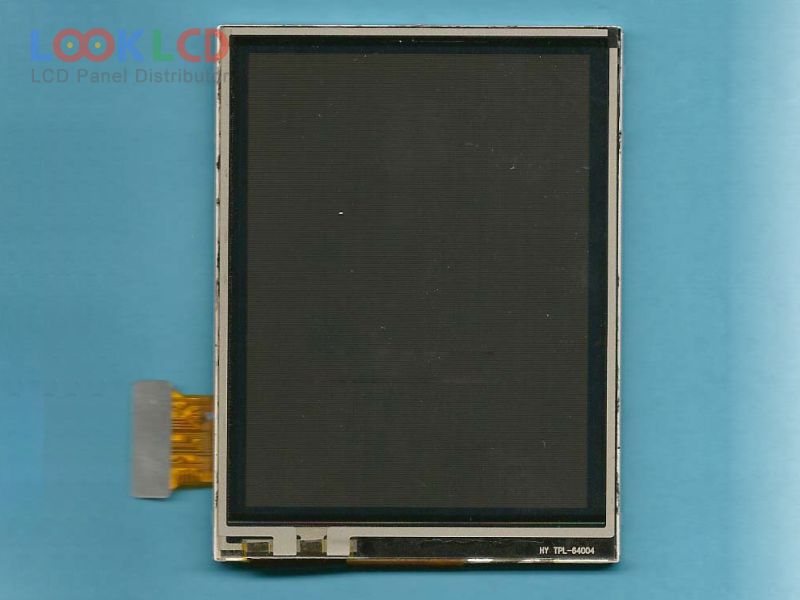

| PartZenbakia | TD035STEB2 |
| Marka | TPO |
| Tamaina | 3.5 |
| Aplikazio | PDA |
| Ebazpena | 240×320 |
| Konposizioa | LCM |
| Distira | 100 |
| CR | 100:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | Toppoly |
| panel eredua | TD035STEB2 |
| panel mota | LTPS TFT-LCD , LCM |
| panelaren tamaina | 3.5 inch |
| ebazpena | 240(RGB)×320 , QVGA |
| bistaratzeko modua | TN, Normally White, Transflective |
| eremu aktiboa | 53.64×71.52 mm |
| eskema | 64×85×4.9 mm |
| azalera | |
| distira | 100 cd/m² (Typ.) |
| kontraste-erlazioa | 100:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | 10/20 (Typ.)(Tr/Td) |
| ikuspegi angelua | 55/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 6S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 60 pins |
| sarrerako tentsioa | 3.3/5.0/11.7/-6.5V (Typ.)(VCC3/VCC5/VDD/VEE) |
| aplikazio | PDA |
| EL160.80.50 ALU | PLANAR | 3.5 | 160×80 |
| LMS350GF07-005 | Samsung | 3.5 | 320×240 |
| PD035QX1 | E Ink | 3.5 | 240×320 |
| TD035SHED1 | TPO | 3.5 | 480×640 |
| TD035STEB1 | TPO | 3.5 | 240×320 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| TD035STED7 | TPO | 3.5 | 240×320 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
