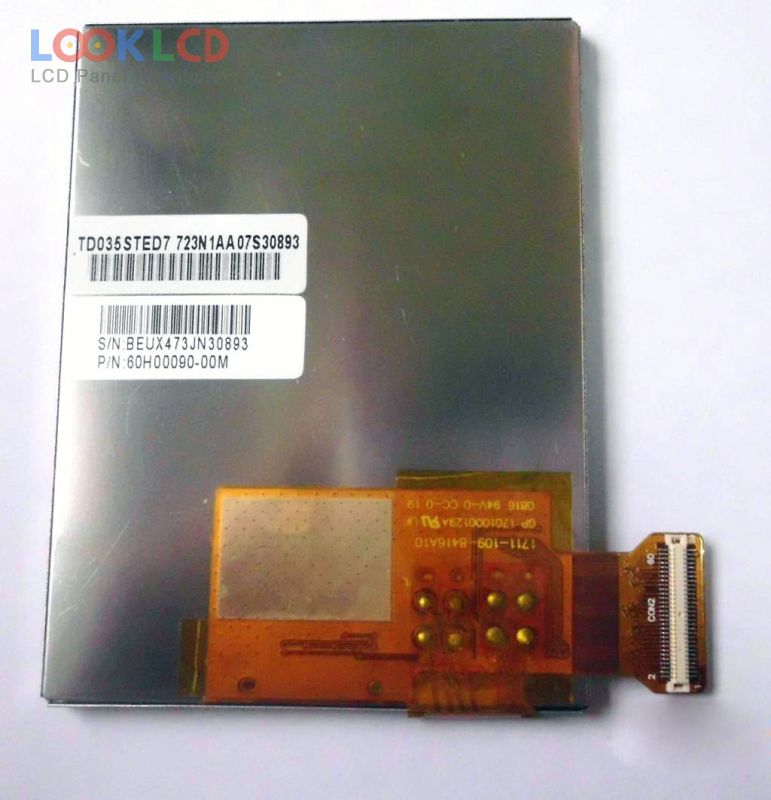

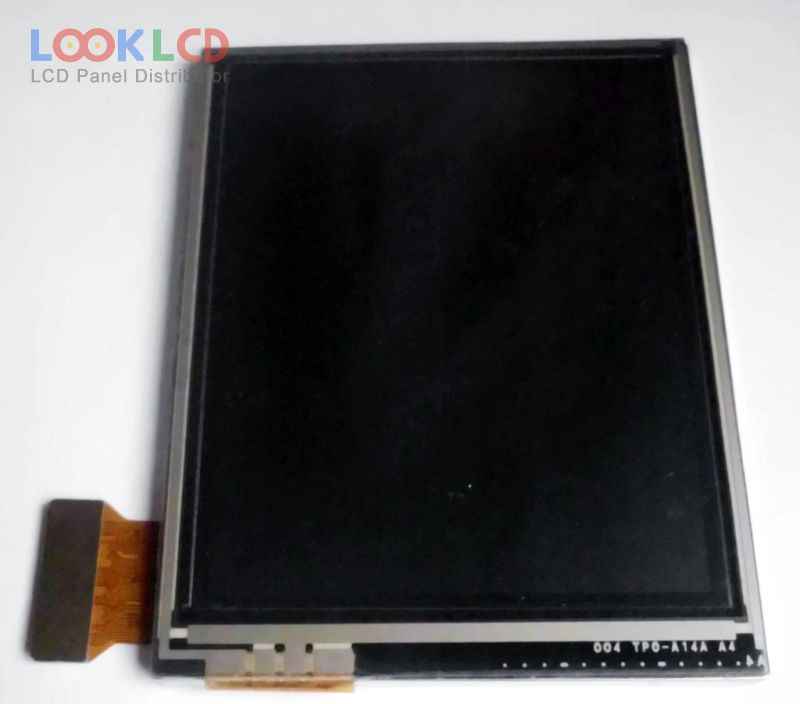

| PartZenbakia | TD035STED7 |
| Marka | TPO |
| Tamaina | 3.5 |
| Aplikazio | PDA |
| Ebazpena | 240×320 |
| Konposizioa | LCM |
| Distira | 115 |
| CR | 100:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | TPO |
| panel eredua | TD035STED7 |
| panel mota | LTPS TFT-LCD , LCM |
| panelaren tamaina | 3.5 inch |
| ebazpena | 240(RGB)×320 , QVGA |
| bistaratzeko modua | TN, Normally White, Transflective |
| eremu aktiboa | 53.28×71.04 mm |
| eskema | 64×85×5.5 mm |
| azalera | |
| distira | 115 cd/m² (Typ.) |
| kontraste-erlazioa | 100:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| bistaratzeko koloreak | 262K (6-bit), CIE193136% |
| erantzun denbora | 35 (Typ.)(Tr+Td) |
| ikuspegi angelua | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) + SPI, 60 pins |
| sarrerako tentsioa | 2.8/2.8/5/10/-5.0V (Typ.)(VDD1/VDD2/AVDD/VGH/VVEE) |
| aplikazio | PDA |
| DLC0350TZG | Other | 3.5 | 240×320 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| PD035OX1 | E Ink | 3.5 | 320×234 |
| TD035SHED1 | TPO | 3.5 | 480×640 |
| TD035STEB1 | TPO | 3.5 | 240×320 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| TD035STED7 | TPO | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| LTP500GV-F01 | Samsung | 5.0 | 480×640 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
