NLT NL2432HC22-50B fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

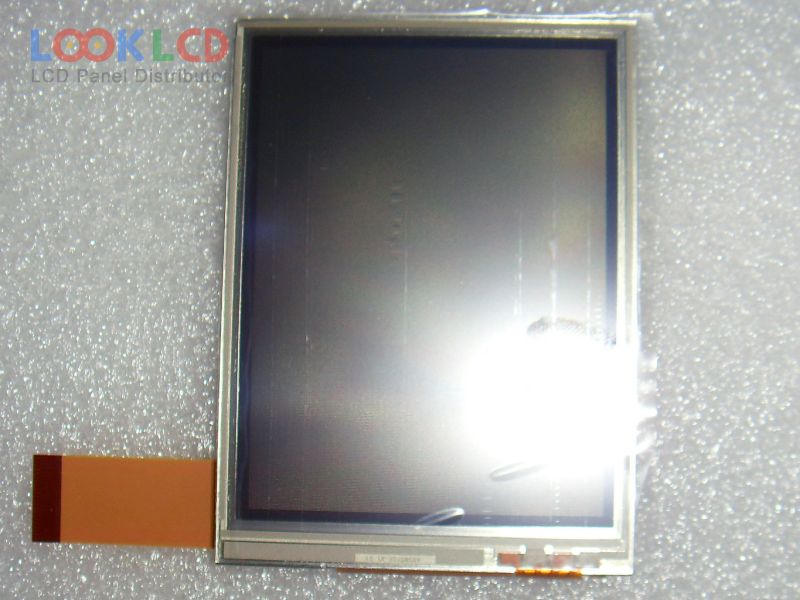

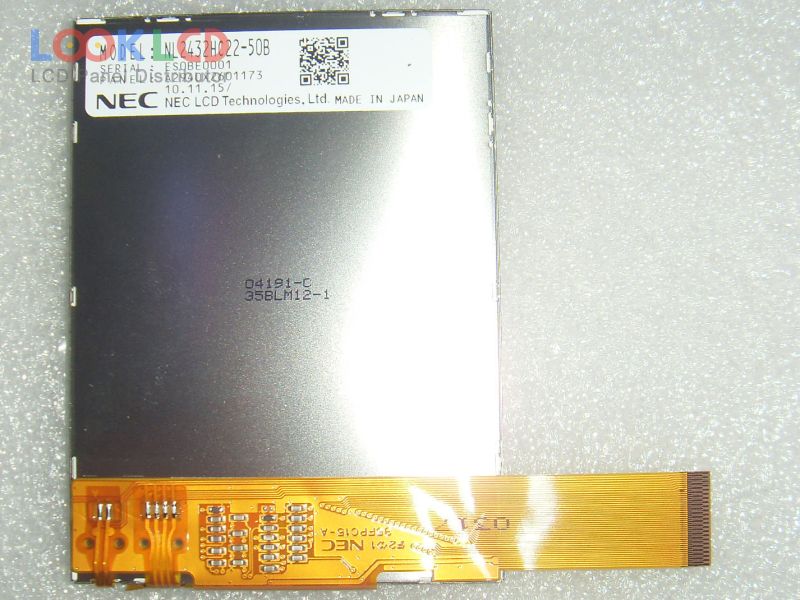

NL2432HC22-50B

NL2432HC22-50B
NL2432HC22-50B
NL2432HC22-50B thumb NL2432HC22-50B thumb
Marka
NLT
Tamaina
3.5
Aplikazio
PDA
Ebazpena
240×320
Konposizioa
LCM
Distira
200
CR
150:1
Koloreak
262K
Atzeko argia
WLED
Interfazea
TTL
In Stock
1332
Zehaztapenak

PartZenbakia NL2432HC22-50B
MarkaNLT
Tamaina3.5
AplikazioPDA
Ebazpena240×320
KonposizioaLCM
Distira200
CR150:1
Koloreak262K
Atzeko argiaWLED
InterfazeaTTL
panel markaNEC
panel ereduaNL2432HC22-50B
panel mota a-Si TFT-LCD , LCM
panelaren tamaina3.5 inch
ebazpena240(RGB)×320 , QVGA
bistaratzeko moduaTN, Normally White, Transflective
eremu aktiboa53.64×71.52 mm
eskema63.5×84.2 mm
azaleraClear, Hard coating (3H)
distira200 cd/m² (Typ.)
kontraste-erlazioa150:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective)
bistaratzeko koloreak262K (6-bit), CIE193140%
erantzun denbora7/23 (Typ.)(Tr/Td)
ikuspegi angelua35/35/35/35 (Typ.)(CR＞5)(L/R/U/D)
maiztasuna60Hz
lanpara motaWLEDWithout Driver
seinale interfazeaParallel RGB (1 ch, 6-bit) + SPI, 45 pins
sarrerako tentsioa3.0V (Typ.)
aplikazioPDA
Familia Eredua
NL2432HC22-22B NLT 3.5 240×320
NL2432HC22-23B NLT 3.5 240×320
NL2432HC22-25E NLT 3.5 240×320
NL2432HC22-32B NLT 3.5 240×320
NL2432HC22-40J NLT 3.5 240×320
NL2432HC22-41B NLT 3.5 240×320
NL2432HC22-41K NLT 3.5 240×320
NL2432HC22-50B NLT 3.5 240×320
