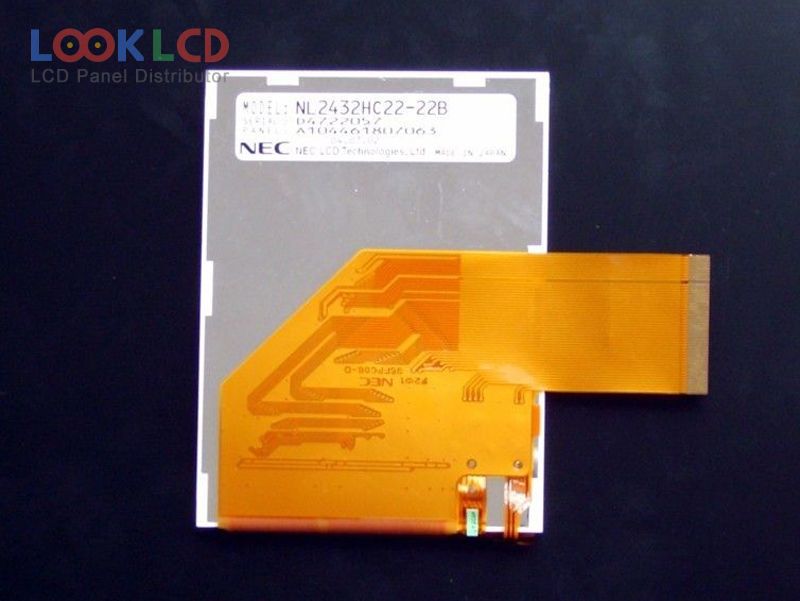

| PartZenbakia | NL2432HC22-22B |
| Marka | NLT |
| Tamaina | 3.5 |
| Aplikazio | PDA |
| Ebazpena | 240×320 |
| Konposizioa | LCM |
| Distira | 90 |
| CR | 90:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL2432HC22-22B |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 3.5 inch |
| ebazpena | 240(RGB)×320 , QVGA |
| bistaratzeko modua | TN, Normally White, Transflective |
| eremu aktiboa | 53.64×71.52 mm |
| eskema | 64×85×4.85 mm |
| azalera | |
| distira | 90 cd/m² (Typ.) |
| kontraste-erlazioa | 90:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | 14/25 (Typ.)(Tr/Td) |
| ikuspegi angelua | |
| maiztasuna | 60Hz |
| lanpara mota | 6S1PWLEDWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 50 pins |
| sarrerako tentsioa | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| aplikazio | PDA |
