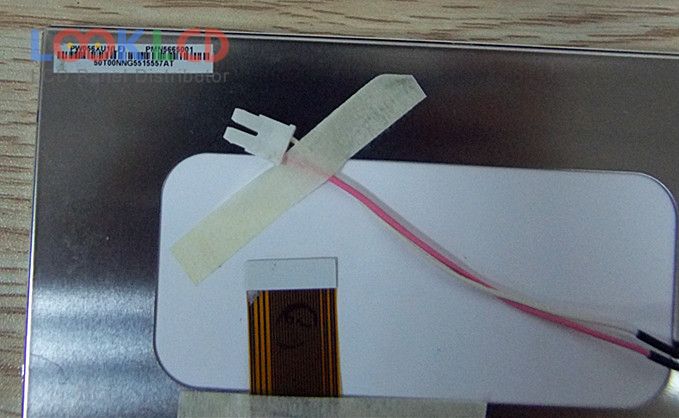

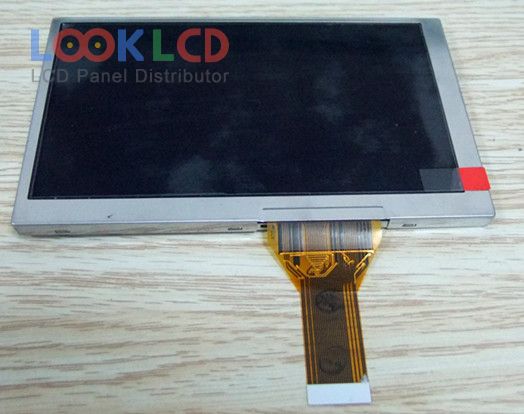

| PartZenbakia | PW056XU1 |
| Marka | E Ink |
| Tamaina | 5.5 |
| Aplikazio | VDP |
| Ebazpena | 480×234 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 350:1 |
| Koloreak | Full color |
| Atzeko argia | CCFL |
| Interfazea | Analog |
| panel marka | PVI |
| panel eredua | PW056XU1 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.5 inch |
| ebazpena | 480(RGB)×234 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 121.68×68.45 mm |
| eskema | 136×82.6×6.1 mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | Full color |
| erantzun denbora | 15/25 (Typ.)(Tr/Td) |
| ikuspegi angelua | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | TFT Specific Analog RGB, 30 pins |
| sarrerako tentsioa | 3.3/3.3/5.0/17.0/12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
| aplikazio | VDP |
| BT055FWM-N00 | BOE | 5.5 | 480×854 |
| H546DLB01.1 | AUO | 5.5 | 1080×1920 |
| H546TAN01.0 | AUO | 5.5 | 720×1280 |
| LS055R1SX04 | SHARP | 5.5 | 1440×2560 |
| LTA055B0R0A | TOSHIBA | 5.5 | 480×234 |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| NL3224AC35-10 | NLT | 5.5 | 320×240 |
| PW050XS3 | E Ink | 5.0 | 320×220 |
| PW056XU1 | E Ink | 5.5 | 480×234 |
| A056DN01 | AUO | 5.6 | 320×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| EE050NA-04A | Innolux | 5.0 | 640×480 |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LQ6AN101 | SHARP | 5.6 | 320×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
