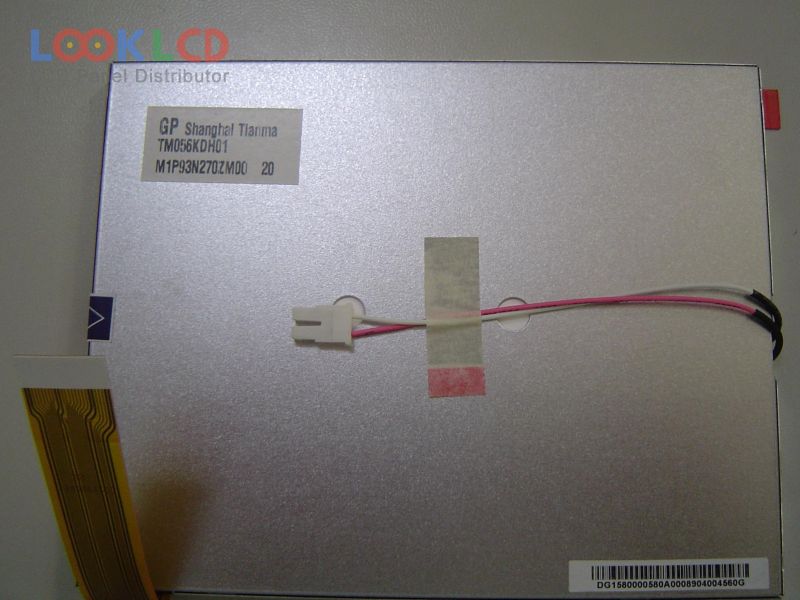

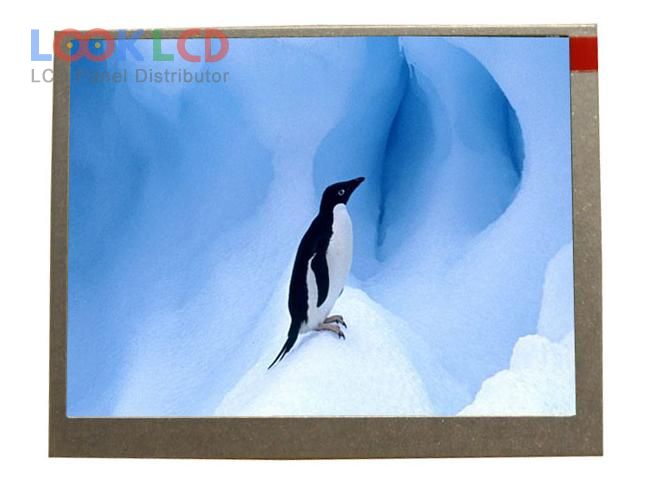

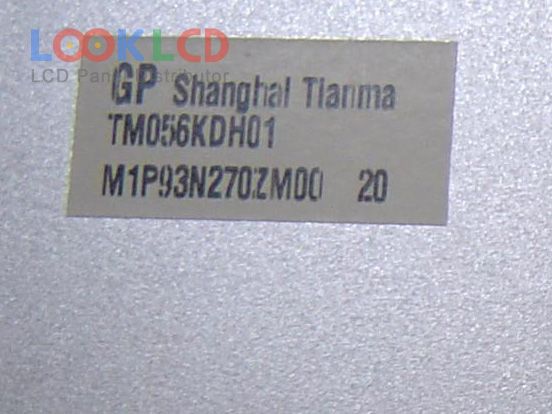

| PartZenbakia | TM056KDH01 |
| Marka | Tianma |
| Tamaina | 5.6 |
| Aplikazio | VDP |
| Ebazpena | 320×234 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 300:1 |
| Koloreak | Full color |
| Atzeko argia | WLED |
| Interfazea | Analog |
| panel marka | TIANMA |
| panel eredua | TM056KDH01 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.6 inch |
| ebazpena | 320(RGB)×234 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 113.28×84.708 mm |
| eskema | 126.5×100 mm |
| azalera | Antiglare |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | Full color , CIE193150% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 2S7PWLEDWithout Driver |
| seinale interfazea | TFT Specific Analog RGB, 26 pins |
| sarrerako tentsioa | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | VDP |
| A056DN01 | AUO | 5.6 | 320×234 |
| A056DN01 V2 | AUO | 5.6 | 320×234 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| LB065W01-B11B | LG Display | 6.5 | 400×234 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| LTA065B096D | TOSHIBA | 6.5 | 400×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
