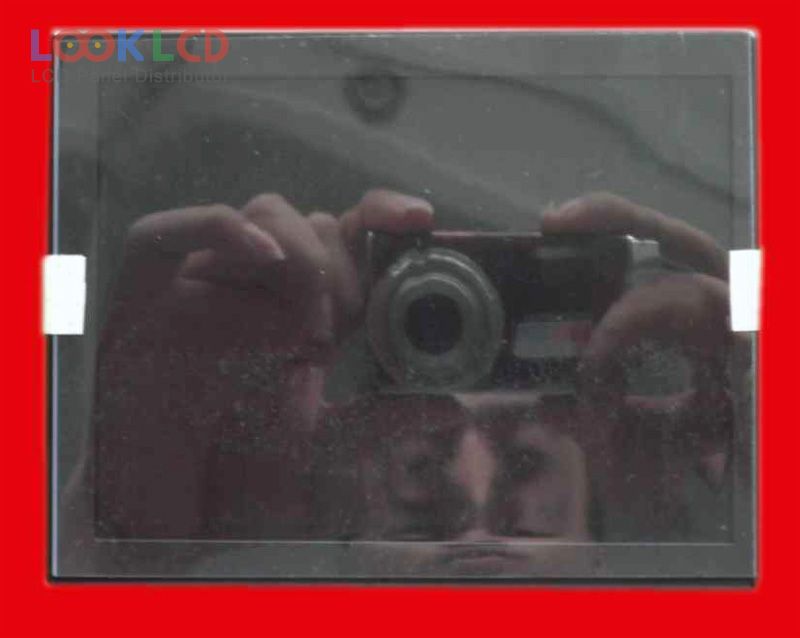

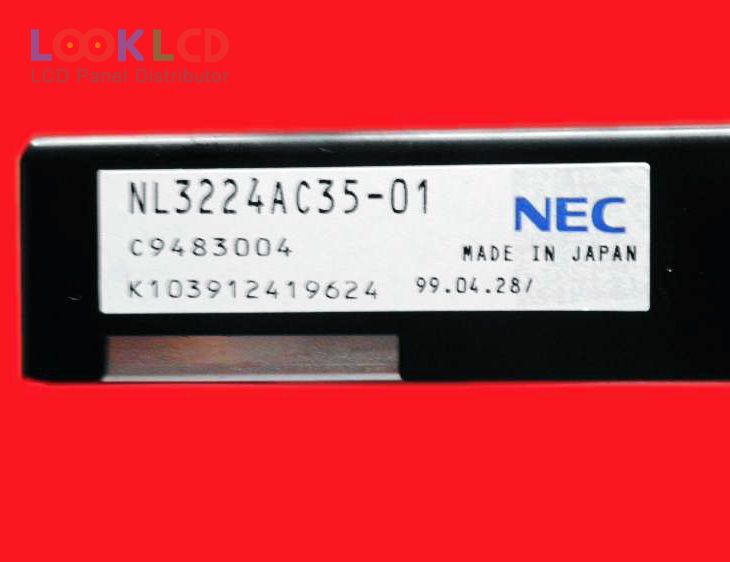

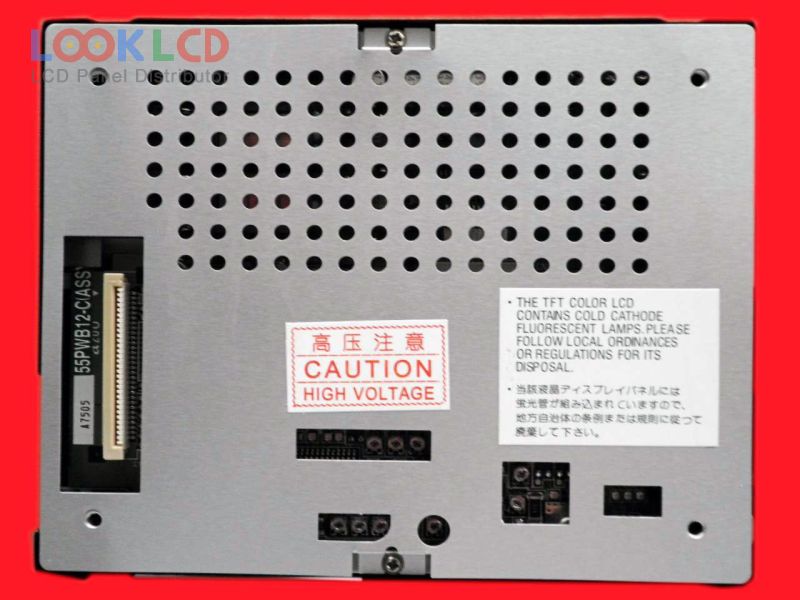

| PartZenbakia | NL3224AC35-01 |
| Marka | NLT |
| Tamaina | 5.5 |
| Aplikazio | CNS |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | 220 |
| CR | 85:1 |
| Koloreak | Full color |
| Atzeko argia | CCFL |
| Interfazea | Analog |
| panel marka | NEC |
| panel eredua | NL3224AC35-01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.5 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 111.36×83.52 mm |
| eskema | 134×110 mm |
| azalera | Antiglare |
| distira | 220 cd/m² (Typ.) |
| kontraste-erlazioa | 85:1 (Typ.) |
| bistaratzeko koloreak | Full color , CIE193150% |
| erantzun denbora | 16/44 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/30/15 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLEmbedded (Inverter) |
| seinale interfazea | Analog RGB, 30 pins |
| sarrerako tentsioa | 9.5V (Typ.) |
| aplikazio | CNS |
