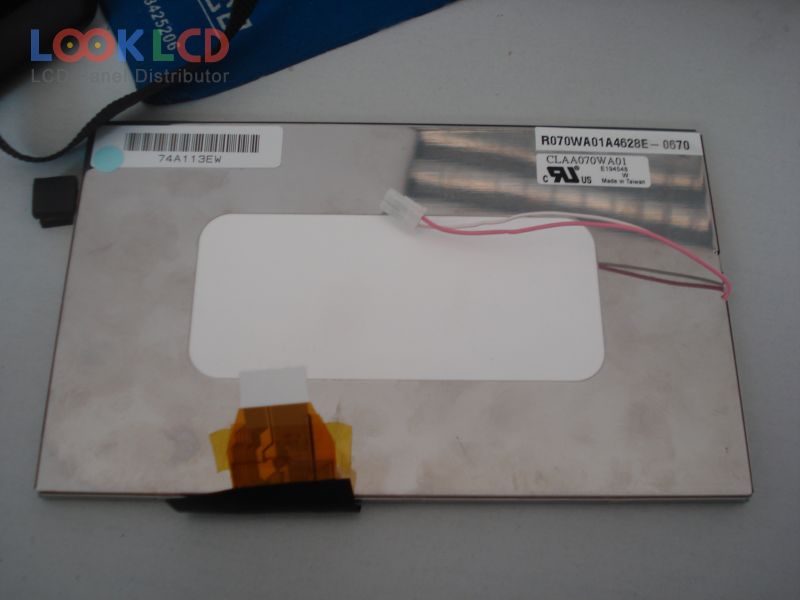

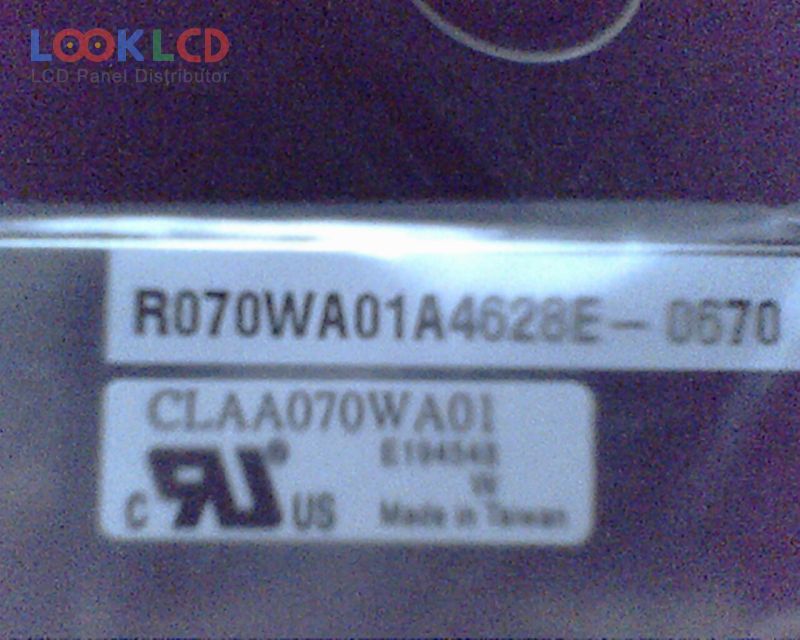

| PartZenbakia | CLAA070WA01 |
| Marka | CPT |
| Tamaina | 7.0 |
| Aplikazio | VDP |
| Ebazpena | 480×234 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 300:1 |
| Koloreak | Full color |
| Atzeko argia | CCFL |
| Interfazea | Analog |
| panel marka | CPT |
| panel eredua | CLAA070WA01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 480(RGB)×234 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 154.08×86.58 mm |
| eskema | 164.9×100 mm |
| azalera | Antiglare |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | Full color |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | TFT Specific Analog RGB, 26 pins |
| sarrerako tentsioa | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | VDP |
| CLAA048LA0ACT | CPT | 4.8 | 800×480 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| CLAA098EP01XG | CPT | 9.8 | 1280×960 |
| A040CN01 V2 | AUO | 4.0 | 480×234 |
| A056DN01 V2 | AUO | 5.6 | 320×234 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| PW056XU1 | E Ink | 5.5 | 480×234 |
| PW070DS1T1 | E Ink | 7.0 | 480×234 |
