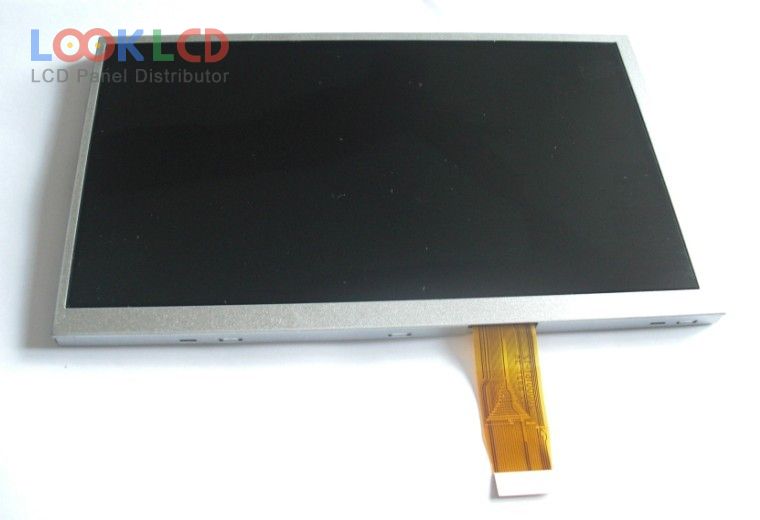

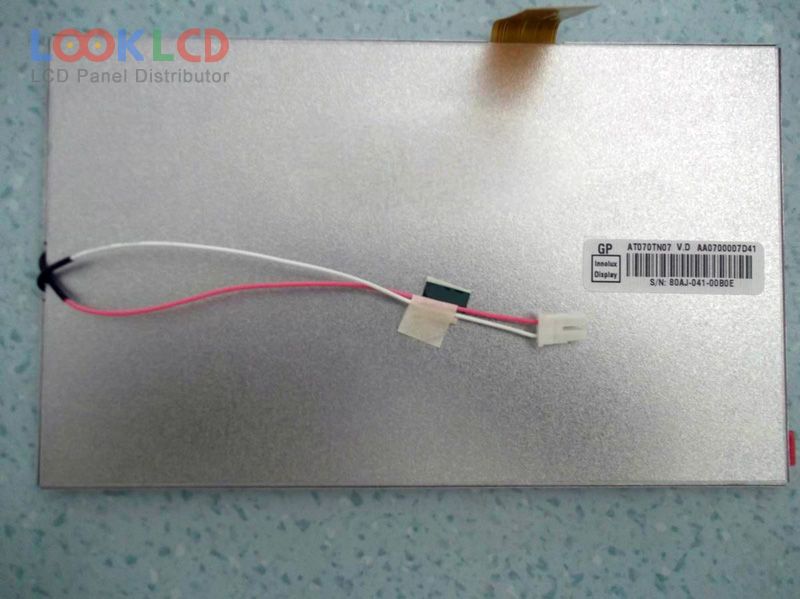

AT070TN07 V.D

AT070TN07 V.D
AT070TN07 V.D
AT070TN07 V.D thumb AT070TN07 V.D thumb
Marka
Innolux
Tamaina
7.0
Aplikazio
VDP
Ebazpena
480×234
Konposizioa
LCM
Distira
200
CR
300:1
Koloreak
Full color
Atzeko argia
WLED
Interfazea
Analog
In Stock
4500
Zehaztapenak

PartZenbakia AT070TN07 V.D
MarkaInnolux
Tamaina7.0
AplikazioVDP
Ebazpena480×234
KonposizioaLCM
Distira200
CR300:1
KoloreakFull color
Atzeko argiaWLED
InterfazeaAnalog
panel markaINNOLUX
panel ereduaAT070TN07 V.D
panel mota a-Si TFT-LCD , LCM
panelaren tamaina7.0 inch
ebazpena480(RGB)×234
bistaratzeko moduaTN, Normally White, Transmissive
eremu aktiboa154.08×86.58 mm
eskema164.9×100 mm
azaleraAntiglare
distira200 cd/m² (Typ.)
kontraste-erlazioa300:1 (Typ.)
bistaratzeko koloreakFull color
erantzun denbora15/20 (Typ.)(Tr/Td)
ikuspegi angelua60/60/40/60 (Typ.)(CR≥10)(L/R/U/D)
lanpara mota3S4PWLEDWithout Driver
seinale interfazeaTFT Specific Analog RGB, 26 pins
sarrerako tentsioa(3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
rohs:
aplikazioVDP
