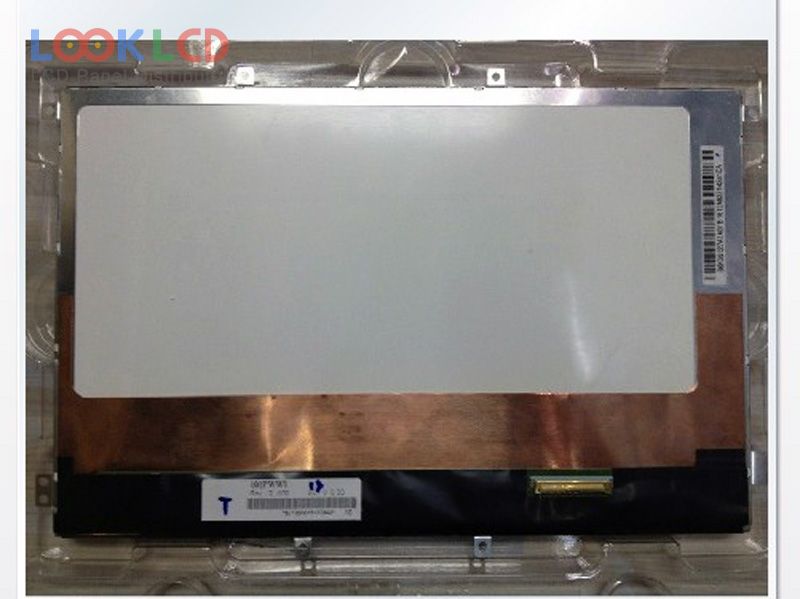

| PartZenbakia | HSD101PWW1-A00 |
| Marka | HannStar |
| Tamaina | 10.1 |
| Aplikazio | PAD |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 800:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HannStar |
| panel eredua | HSD101PWW1-A00 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | HS-IPS, Normally Black, Transmissive |
| eremu aktiboa | 216.96×135.6 mm |
| azalera | Glare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.) |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-A00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| B116XAN01.0 | AUO | 11.6 | 1366×768 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| LD070WX4-SM01 | LG Display | 7.0 | 800×1280 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
| YXD090TN02-40NM01 | SEBO | 9.0 | 1280×800 |
