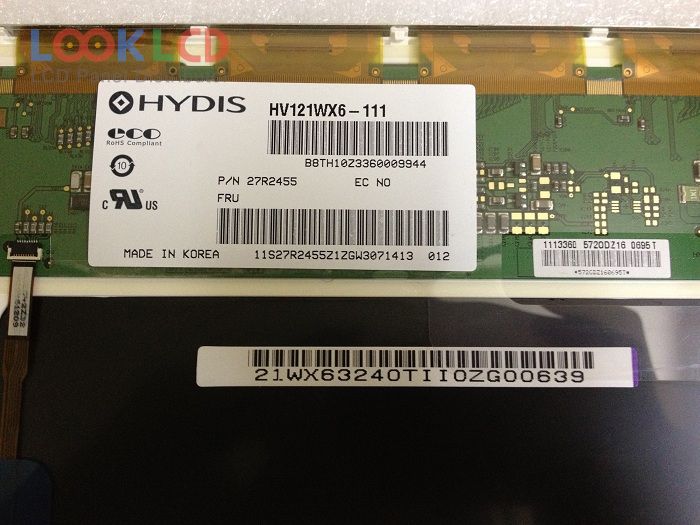

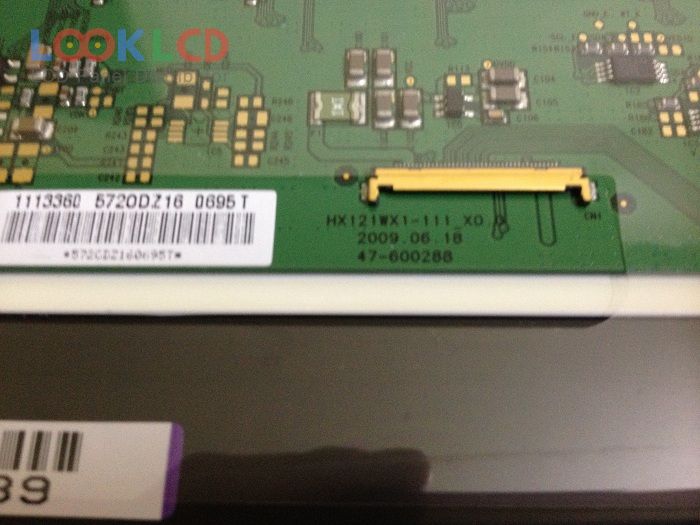

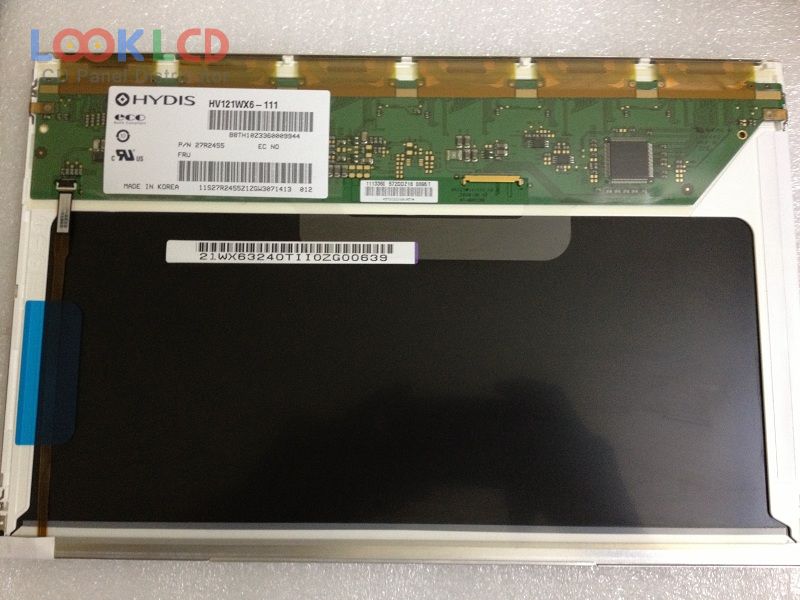

| PartZenbakia | HV121WX6-111 |
| Marka | HYDIS |
| Tamaina | 12.1 |
| Aplikazio | PAD |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HYDIS |
| panel eredua | HV121WX6-111 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | AFFS, Normally Black, Transmissive |
| eremu aktiboa | 261.12×163.2 mm |
| eskema | 276.8×180×6.6 mm |
| azalera | |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| B080XAN03.0 | AUO | 7.9 | 768×1024 |
| B101XAN02.0 | AUO | 10.1 | 1366×768 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| HV121P01-100 | HYDIS | 12.1 | 1400×1050 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| LD070WX6-SM01 | LG Display | 7.0 | 800×1280 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| YXD090TN02-40NM01 | SEBO | 9.0 | 1280×800 |
