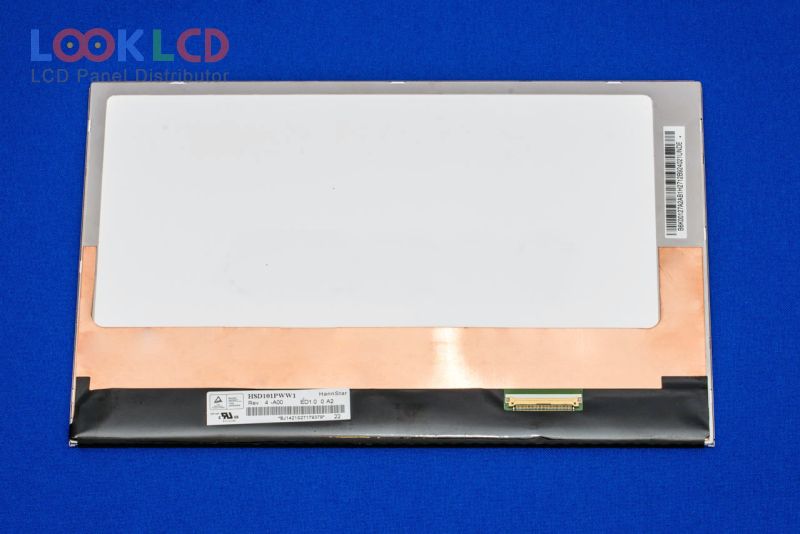

HSD101PWW1-A00 Rev.4

HSD101PWW1-A00 Rev.4
HSD101PWW1-A00 Rev.4 thumb
Marka
HannStar
Tamaina
10.1
Aplikazio
PAD
Ebazpena
1280×800
Konposizioa
LCM
Distira
350
CR
800:1
Koloreak
262K
Atzeko argia
WLED
Interfazea
LVDS
In Stock
2500
Zehaztapenak

PartZenbakia HSD101PWW1-A00 Rev.4
MarkaHannStar
Tamaina10.1
AplikazioPAD
Ebazpena1280×800
KonposizioaLCM
Distira350
CR800:1
Koloreak262K
Atzeko argiaWLED
InterfazeaLVDS
panel markaHannStar
panel ereduaHSD101PWW1-A00 Rev.4
panel mota a-Si TFT-LCD , LCM
panelaren tamaina10.1 inch
ebazpena1280(RGB)×800 , WXGA
bistaratzeko moduaHS-IPS, Normally Black, Transmissive
eremu aktiboa216.96×135.6 mm
eskema229.46×149.2×5.2 mm
azaleraGlare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.)
distira350 cd/m² (Typ.)
kontraste-erlazioa800:1 (Typ.)
bistaratzeko koloreak262K (6-bit), CIE193145%
erantzun denbora25 (Typ.)(Tr+Td)
ikuspegi angelua89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara motaWLEDEmbedded (LED Driver)
seinale interfazeaLVDS (1 ch, 6-bit), 40 pins
sarrerako tentsioa3.3V (Typ.)
aplikazioPAD
