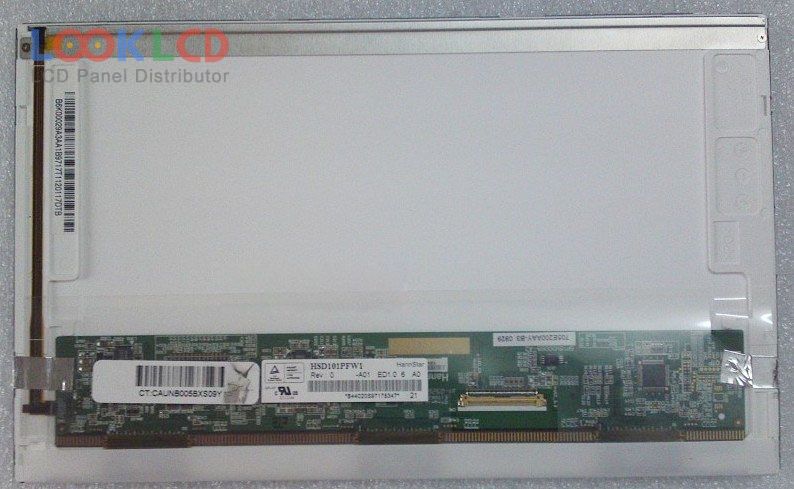

| PartZenbakia | HSD101PFW1-A01 |
| Marka | HannStar |
| Tamaina | 10.1 |
| Aplikazio | DPF |
| Ebazpena | 1024×576 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HannStar |
| panel eredua | HSD101PFW1-A01 5 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1024(RGB)×576 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222.72×125.28 mm |
| eskema | 235×143×5.2 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193150% |
| erantzun denbora | 2/6 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 27 pcsWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | DPF |
