Innolux N080ICE-GB0 Rev.A0 fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

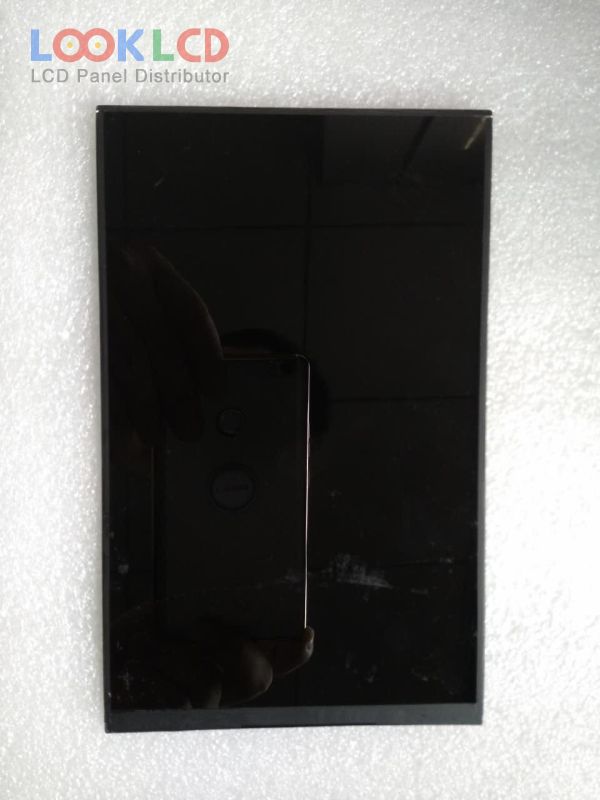

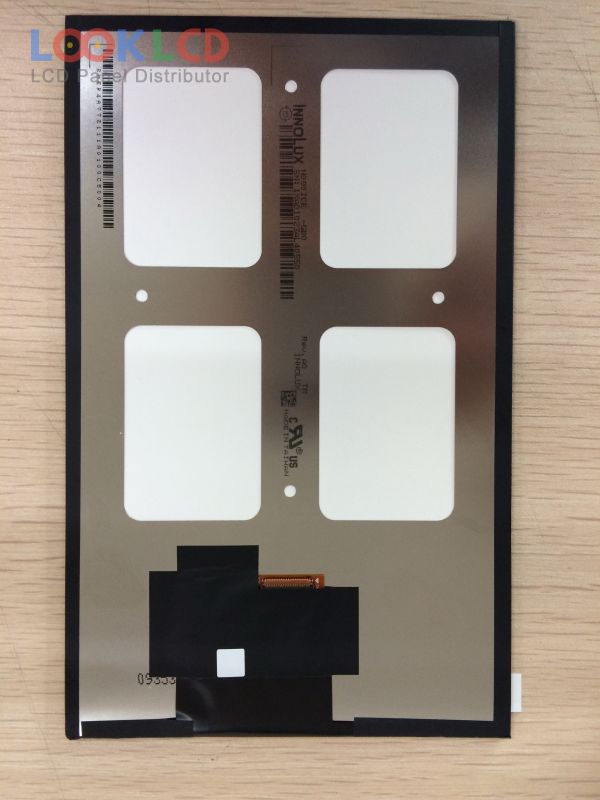

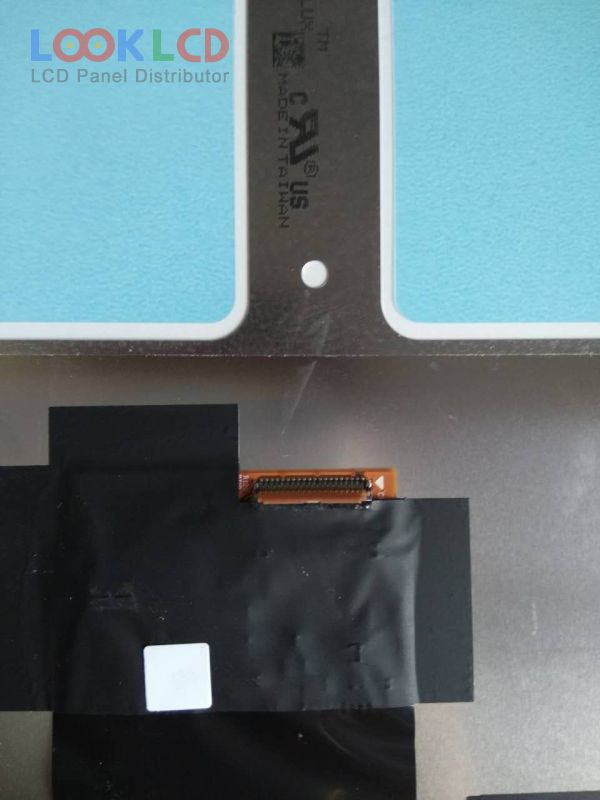

N080ICE-GB0 Rev.A0

N080ICE-GB0 Rev.A0
N080ICE-GB0 Rev.A0
N080ICE-GB0 Rev.A0
N080ICE-GB0 Rev.A0 thumb N080ICE-GB0 Rev.A0 thumb N080ICE-GB0 Rev.A0 thumb
Marka
Innolux
Tamaina
8.0
Aplikazio
PAD
Ebazpena
800×1280
Konposizioa
LCM
Distira
400
CR
1000:1
Koloreak
16.7M
Atzeko argia
WLED
Interfazea
MIPI
In Stock
38688
Zehaztapenak

PartZenbakia N080ICE-GB0 Rev.A0
MarkaInnolux
Tamaina8.0
AplikazioPAD
Ebazpena800×1280
KonposizioaLCM
Distira400
CR1000:1
Koloreak16.7M
Atzeko argiaWLED
InterfazeaMIPI
panel markaINNOLUX
panel ereduaN080ICE-GB0 Rev.A0
panel mota a-Si TFT-LCD , LCM
panelaren tamaina8.0 inch
ebazpena800(RGB)×1280 , WXGA
bistaratzeko moduaAAS, Normally Black, Transmissive
eremu aktiboa107.64×172.224 mm
eskema114.6×184.1×3.5 mm
azaleraGlare (Haze 0%), Hard coating, Antireflection
distira400 cd/m² (Typ.)
kontraste-erlazioa1000:1 (Typ.)
bistaratzeko koloreak16.7M (8-bit), CIE193160%
erantzun denbora25 (Typ.)(Tr+Td)
ikuspegi angelua89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara motaWLEDWithout Driver
seinale interfazeaMIPI (4 data lanes), 39 pins
sarrerako tentsioa1.8/3.3V (Typ.)(VCC/VDDI)
aplikazioPAD
