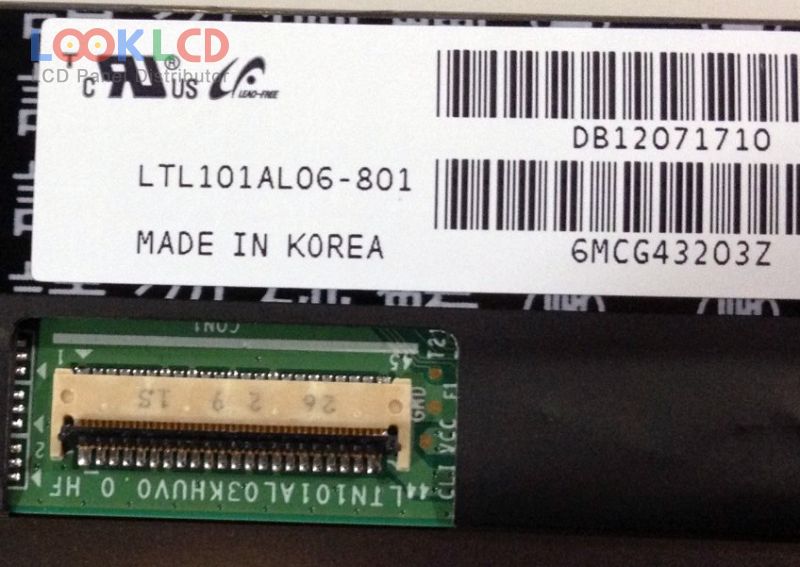

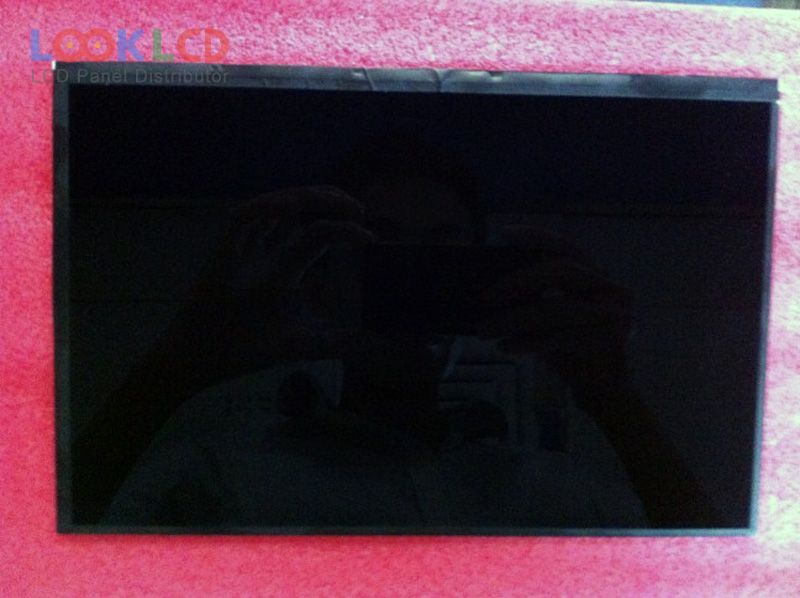

| PartZenbakia | LTL101AL06-801 |
| Marka | Samsung |
| Tamaina | 10.1 |
| Aplikazio | PAD |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 900:1 |
| Koloreak | 16.2M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTL101AL06-801 5 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | PLS, Normally Black, Transmissive |
| eremu aktiboa | 216.96×135.6 mm |
| eskema | 228.21×148.86×4.59 mm |
| azalera | Hard coating (3H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) |
| bistaratzeko koloreak | 16.2M (6-bit + FRC), CIE193150% |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4 stringsWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 45 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
