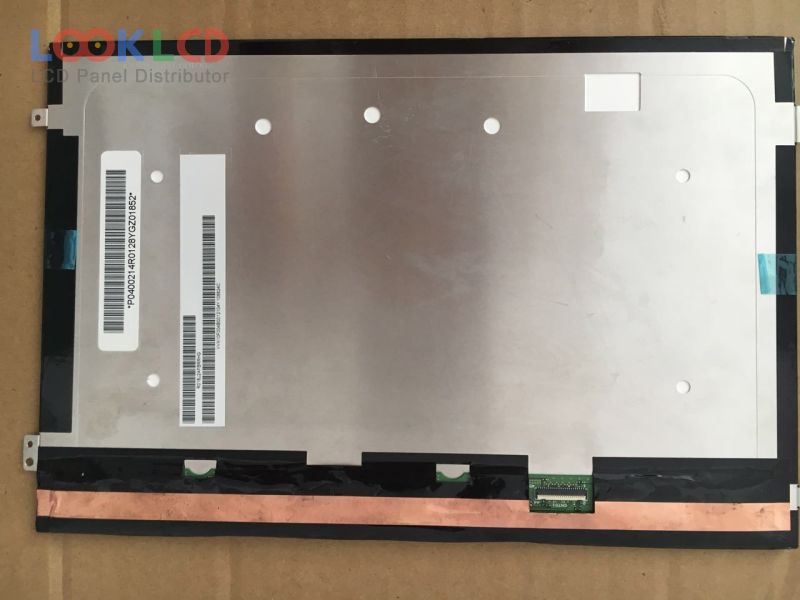

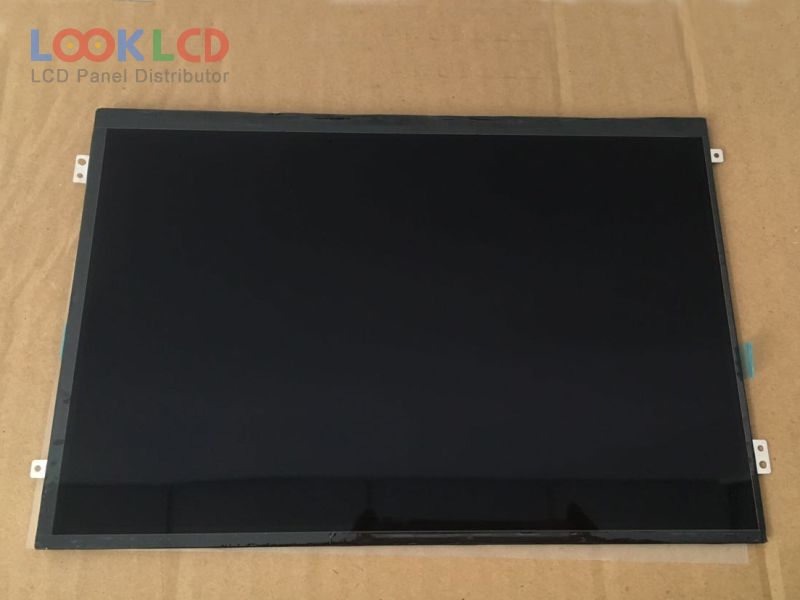

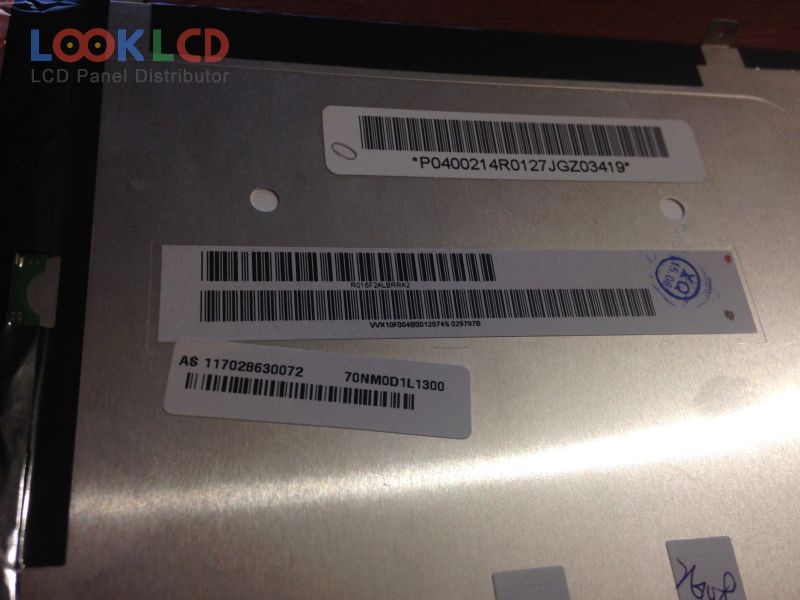

| PartZenbakia | VVX10F004B00 |
| Marka | Panasonic |
| Tamaina | 10.1 |
| Aplikazio | PAD |
| Ebazpena | 1920×1200 |
| Konposizioa | LCM |
| Distira | 600 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | Panasonic |
| panel eredua | VVX10F004B00 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1920(RGB)×1200 , WUXGA |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| eremu aktiboa | 217.44×135.9 mm |
| eskema | 228.86×152.5×4.48 mm |
| azalera | Hard coating, Antireflection |
| distira | 600 cd/m² (Min.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193150% |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 10S6PWLEDEmbedded (LED Driver) |
| seinale interfazea | MIPI (4 data lanes), 45 pins |
| sarrerako tentsioa | 2.5/3.3V (Typ.)(IOVDD/VDD) |
| aplikazio | PAD |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| LP101WH4-SLAB | LG Display | 10.1 | 1366×768 |
| N101L6-L0A | Innolux | 10.1 | 1024×600 |
| VVX10F002A00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F034N00 | Panasonic | 10.1 | 1920×1200 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| B101XAN02.0 | AUO | 10.1 | 1366×768 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| LD070WX4-SM01 | LG Display | 7.0 | 800×1280 |
| LP079X01-SMA7 | LG Display | 7.9 | 768×1024 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTL120QL01-001 | Samsung | 12.0 | 2160×1440 |
