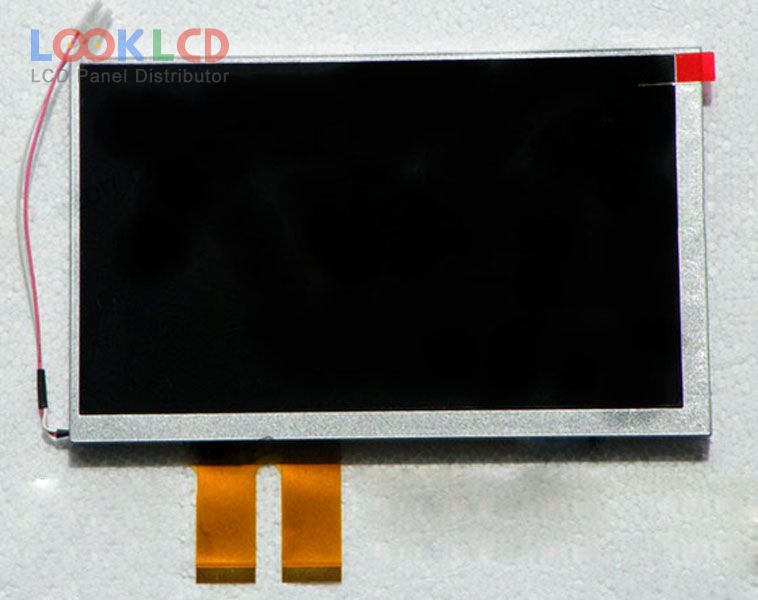

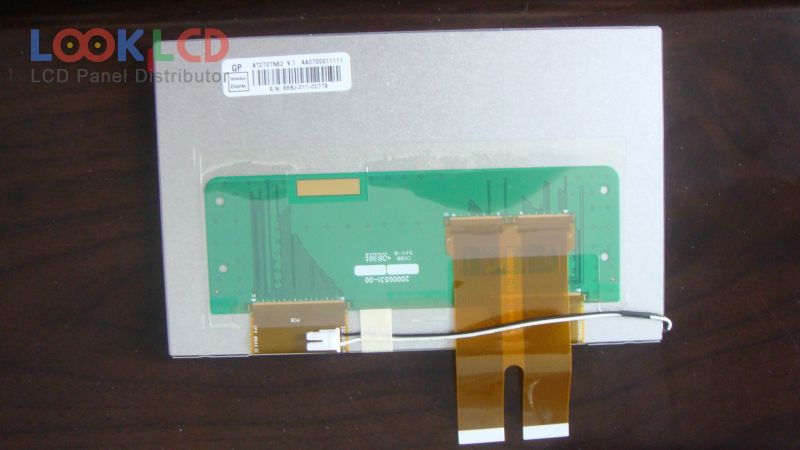

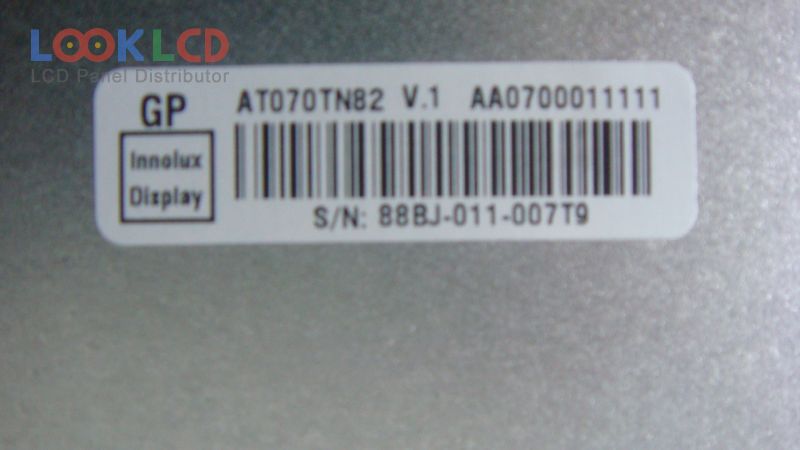

| PartZenbakia | AT070TN82 V.1 |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | MP4 |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | INNOLUX |
| panel eredua | AT070TN82 V.1 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 165×104×6.3 mm |
| azalera | Antiglare |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 3S9PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 60 pins |
| sarrerako tentsioa | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplikazio | MP4 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| AT070TN94 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| BA070WS1-402 | BOE | 7.0 | 1024×600 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| HV070WS1-100 | HYDIS | 7.0 | 1024×600 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| LTP700WV-F01 | Samsung | 7.0 | 800×480 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| TM080XPH01 | Tianma | 8.0 | 1280×768 |
