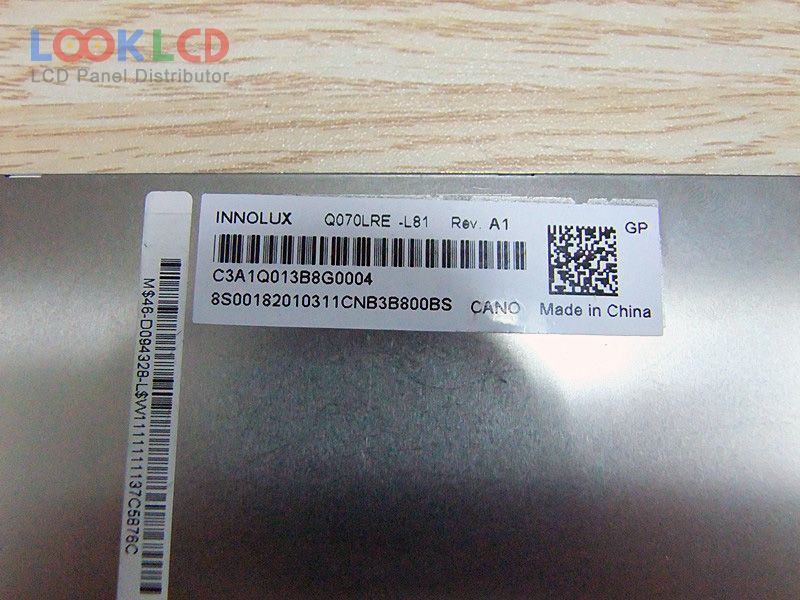

| PartZenbakia | Q070LRE-L81 |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | MP4 |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 700:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CHIMEI INNOLUX |
| panel eredua | Q070LRE-L81 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 167.25×104.65×2.9 mm |
| azalera | Glare (Haze 0%) |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/75/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4S6PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 39 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | MP4 |
| 70WVW2A | SII | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
| Q070LRE-LA1 | Innolux | 7.0 | 1024×600 |
| Q070LRE-LB1 | Innolux | 7.0 | 1024×600 |
| TX18D41VM0EAA | KOE | 7.0 | 1024×600 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LMS700KF23 | Samsung | 7.0 | 800×480 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
