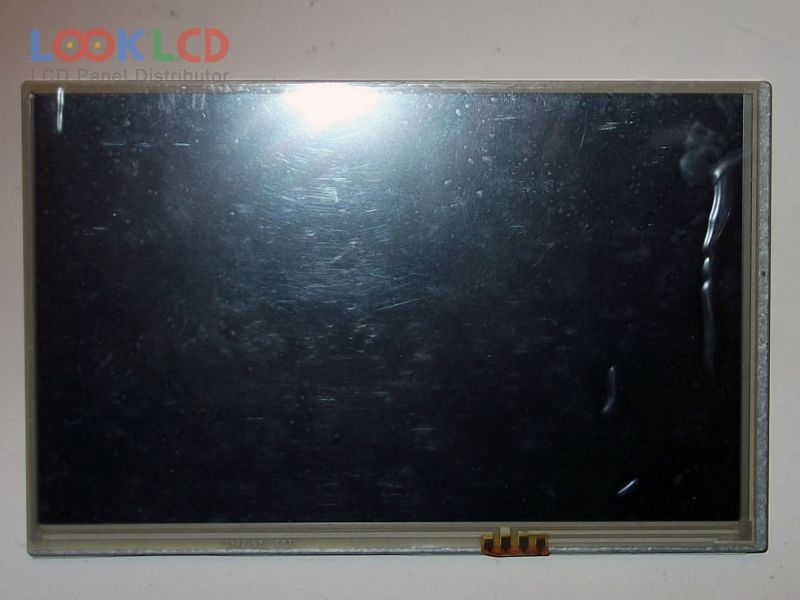

| PartZenbakia | CLAA070NC0BCT |
| Marka | CPT |
| Tamaina | 7.0 |
| Aplikazio | MP4 |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CPT |
| panel eredua | CLAA070NC0BCT |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 165×102×6.3 mm |
| azalera | Glare (Haze 0%), Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | MP4 |
