Innolux AT070TN83 V.3 fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

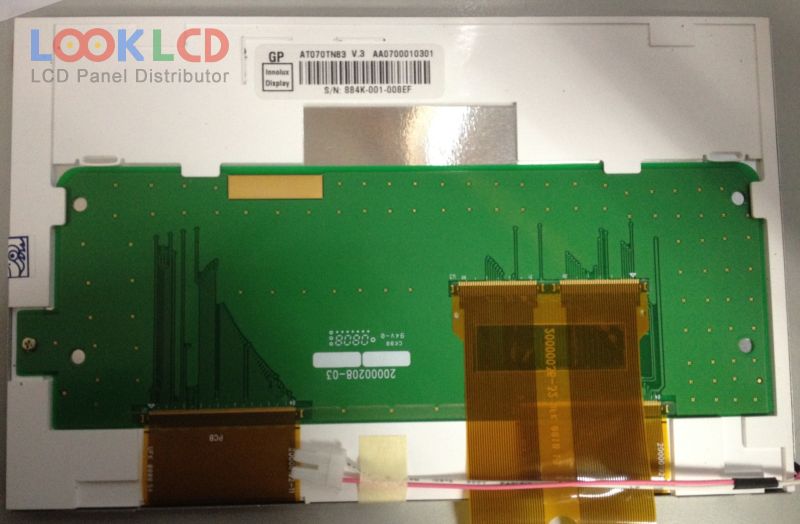

AT070TN83 V.3

AT070TN83 V.3
AT070TN83 V.3 thumb
Marka
Innolux
Tamaina
7.0
Aplikazio
MP4
Ebazpena
800×480
Konposizioa
LCM
Distira
300
CR
500:1
Koloreak
262K
Atzeko argia
WLED
Interfazea
TTL
In Stock
4380
Zehaztapenak

PartZenbakia AT070TN83 V.3
MarkaInnolux
Tamaina7.0
AplikazioMP4
Ebazpena800×480
KonposizioaLCM
Distira300
CR500:1
Koloreak262K
Atzeko argiaWLED
InterfazeaTTL
panel markaINNOLUX
panel ereduaAT070TN83 V.3
panel mota a-Si TFT-LCD , LCM
panelaren tamaina7.0 inch
ebazpena800(RGB)×480 , WVGA
bistaratzeko moduaTN, Normally White, Transmissive
eremu aktiboa152.4×91.44 mm
eskema165×104×5.8 mm
azaleraAntiglare
distira300 cd/m² (Typ.)
kontraste-erlazioa500:1 (Typ.)
bistaratzeko koloreak262K (6-bit)
erantzun denbora10/15 (Typ.)(Tr/Td)
ikuspegi angelua70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
lanpara mota3S9PWLEDWithout Driver
seinale interfazeaParallel RGB (1 ch, 6-bit), 60 pins
sarrerako tentsioa3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
aplikazioMP4
Familia Eredua
AT070TN01 Innolux 7.0 480×234
AT070TN07 V.A Innolux 7.0 480×234
AT070TN83 Innolux 7.0 800×480
AT070TN83 TP Innolux 7.0 800×480
AT070TN83 V.1 Innolux 7.0 800×480
AT070TN83 V.3 Innolux 7.0 800×480
AT070TN84 V.1 Innolux 7.0 800×480
AT070TN92 Innolux 7.0 800×480
AT070TN92 V.3 Innolux 7.0 800×480
AT070TN92 V.X Innolux 7.0 800×480
