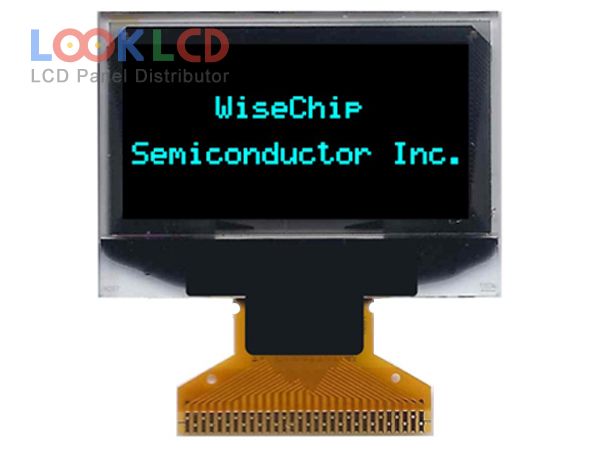

| PartZenbakia | UG-2864KLBLG01 |
| Marka | WiseChip |
| Tamaina | 1.3 |
| Aplikazio | IA |
| Ebazpena | 128×64 |
| Konposizioa | OLED |
| Distira | 80 |
| CR | 10000:1 |
| Koloreak | Mono(Blue) |
| Atzeko argia | self |
| Interfazea | CPU/SPI/I²C |
| panel marka | WiseChip |
| panel eredua | UG-2864KLBLG01 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 1.3 inch |
| ebazpena | 128×64 |
| eremu aktiboa | 29.42×14.7 mm |
| eskema | 34.5×23×1.55 mm |
| azalera | |
| distira | 80 cd/m² (Typ.) |
| kontraste-erlazioa | 10000 : 1 (Typ.) |
| bistaratzeko koloreak | Mono(Blue) |
| ikuspegi angelua | |
| gidariaren ic | Built-in SSD1306 |
| seinale interfazea | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| sarrerako tentsioa | 2.8/12.0V (Typ.)(VDD/VCC) |
| aplikazio | IA |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASWPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864ASYPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSWLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
| AA084XB01 | Mitsubishi | 8.4 | 1024×768 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| LB064V02-A1 | LG Display | 6.4 | 640×480 |
| LM10V332 | SHARP | 10.4 | 640×480 |
| LM641836R | SHARP | 9.4 | 640×480 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC20-20 | NLT | 6.5 | 640×480 |
| SP24V001 | KOE | 9.4 | 640×480 |
