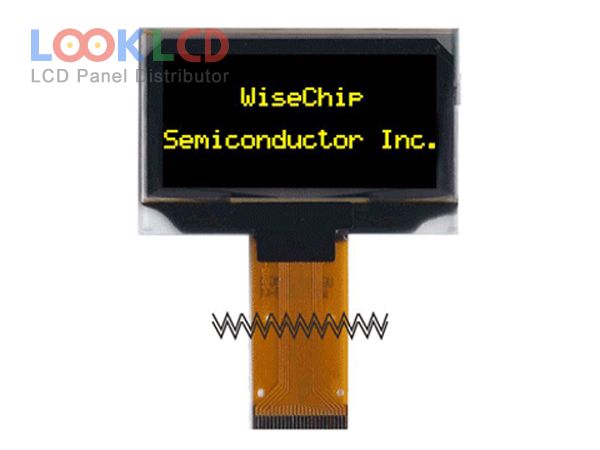

| PartZenbakia | UG-2864KSYMG01 |
| Marka | WiseChip |
| Tamaina | 1.54 |
| Aplikazio | IA |
| Ebazpena | 128×64 |
| Konposizioa | OLED |
| Distira | 150 |
| CR | 10000:1 |
| Koloreak | Mono(Yellow) |
| Atzeko argia | self |
| Interfazea | CPU/SPI/I²C |
| panel marka | WiseChip |
| panel eredua | UG-2864KSYMG01 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 1.54 inch |
| ebazpena | 128×64 |
| eremu aktiboa | 35.052×17.516 mm |
| eskema | 42.04×27.22 mm |
| azalera | |
| distira | 150 cd/m² (Typ.) |
| kontraste-erlazioa | 10000 : 1 (Typ.) |
| bistaratzeko koloreak | Mono(Yellow) |
| ikuspegi angelua | |
| gidariaren ic | Built-in SSD1309 |
| seinale interfazea | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| aplikazio | IA |
