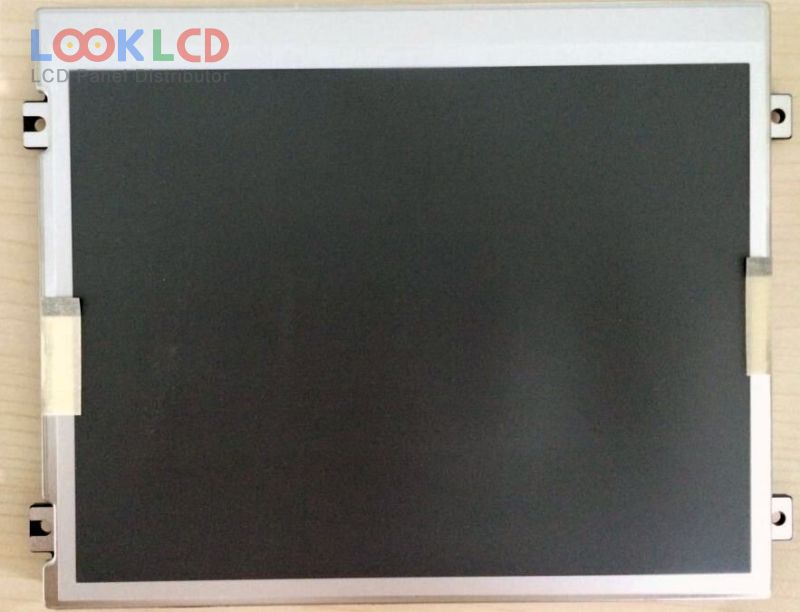

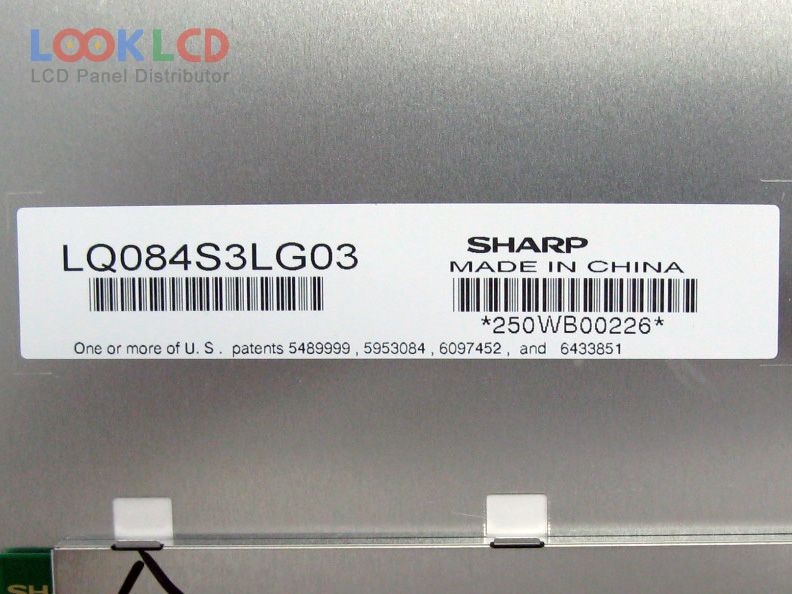

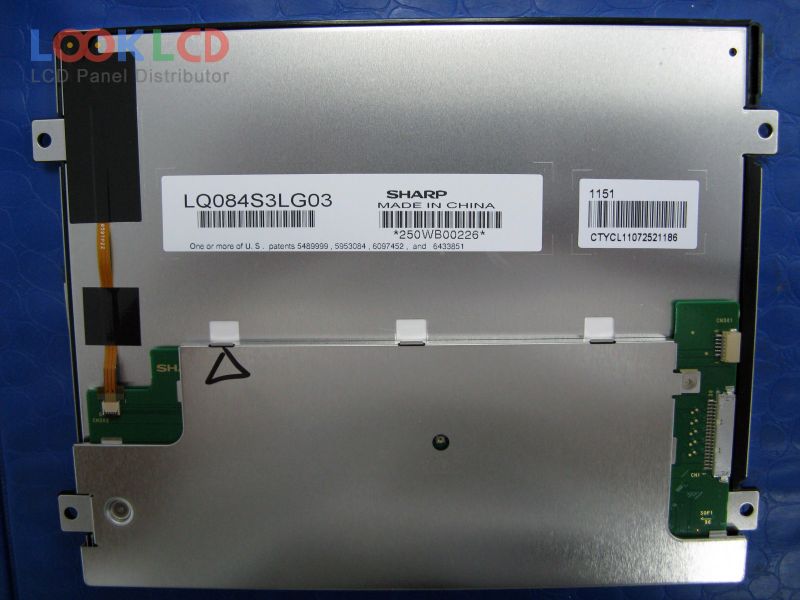

| PartZenbakia | LQ084S3LG03 |
| Marka | SHARP |
| Tamaina | 8.4 |
| Aplikazio | IA |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 330 |
| CR | 450:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SHARP |
| panel eredua | LQ084S3LG03 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.4 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 170.4×127.8 mm |
| eskema | 199.5×154×12.45 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 330 cd/m² (Typ.) |
| kontraste-erlazioa | 450:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 8-bit) |
| erantzun denbora | 35 (Typ.)(Tr+Td) |
| ikuspegi angelua | 65/65/60/55 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
