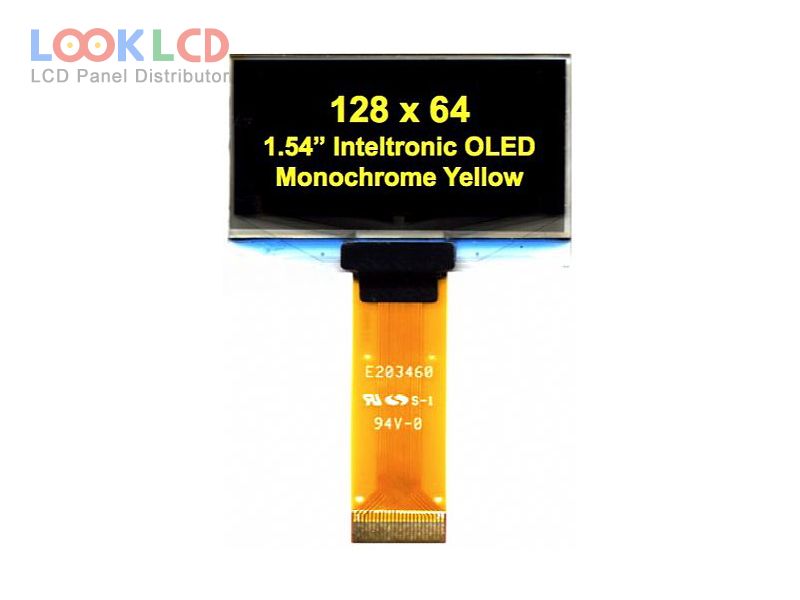

| PartZenbakia | UG-2864ASYCG01 |
| Marka | WiseChip |
| Tamaina | 1.54 |
| Aplikazio | IA |
| Ebazpena | 128×64 |
| Konposizioa | OLED |
| Distira | 150 |
| CR | 10000:1 |
| Koloreak | Mono(Yellow) |
| Atzeko argia | self |
| Interfazea | CPU/SPI/I²C |
| panel marka | WiseChip |
| panel eredua | UG-2864ASYCG01 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 1.54 inch |
| ebazpena | 128×64 |
| eremu aktiboa | 35.056×17.52 mm |
| eskema | 45.24×29.14×2.1 mm |
| azalera | |
| distira | 150 cd/m² (Typ.) |
| kontraste-erlazioa | 10000 : 1 (Typ.) |
| bistaratzeko koloreak | Mono(Yellow) (1-bit) |
| ikuspegi angelua | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| gidariaren ic | COG Built-in SSD1305 |
| seinale interfazea | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| sarrerako tentsioa | 2.8/12.5V (Typ.)(VDD/VCC) |
| rohs: | |
| aplikazio | IA |
