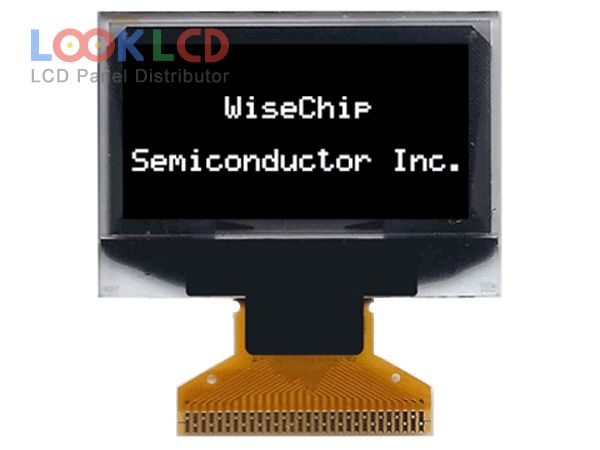

| PartZenbakia | UG-2864KSWLG01 |
| Marka | WiseChip |
| Tamaina | 1.3 |
| Aplikazio | IA |
| Ebazpena | 128×64 |
| Konposizioa | OLED |
| Distira | 100 |
| CR | 10000:1 |
| Koloreak | Mono(White) |
| Atzeko argia | self |
| Interfazea | CPU/SPI/I²C |
| panel marka | WiseChip |
| panel eredua | UG-2864KSWLG01 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 1.3 inch |
| ebazpena | 128×64 |
| eremu aktiboa | 29.42×14.7 mm |
| eskema | 34.5×23×1.55 mm |
| azalera | |
| distira | 100 cd/m² (Typ.) |
| kontraste-erlazioa | 10000 : 1 (Typ.) |
| bistaratzeko koloreak | Mono(White) |
| ikuspegi angelua | |
| gidariaren ic | COG Built-in SSD1306 |
| seinale interfazea | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| sarrerako tentsioa | 2.8/12.0V (Typ.)(VDD/VCC) |
| rohs: | |
| aplikazio | IA |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASGIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864ASYPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSWLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
| AA084XB11 | Mitsubishi | 8.4 | 1024×768 |
| AA104VH02 | Mitsubishi | 10.4 | 640×480 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G133I1-L01 | Innolux | 13.3 | 1280×800 |
| G150XG03 V4 | AUO | 15.0 | 1024×768 |
| LM32015T | SHARP | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ104V1LG81 | SHARP | 10.4 | 640×480 |
| M606-L24A | NAN YA | 5.7 | 320×240 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
