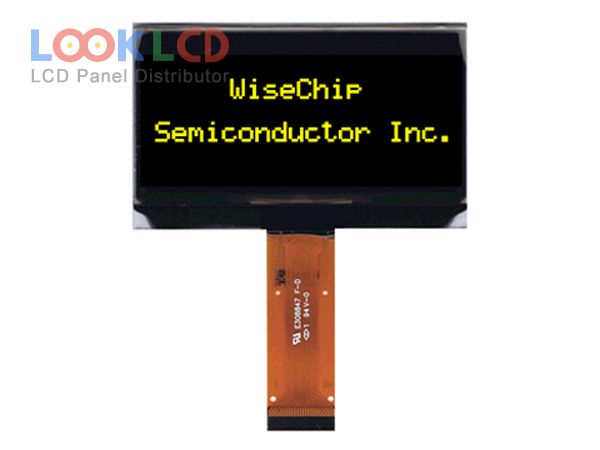

| PartZenbakia | UG-2864ASYPG01 |
| Marka | WiseChip |
| Tamaina | 2.4 |
| Aplikazio | IA |
| Ebazpena | 128×64 |
| Konposizioa | OLED |
| Distira | 80 |
| CR | |
| Koloreak | Mono(Yellow) |
| Atzeko argia | self |
| Interfazea | CPU/SPI/I²C |
| panel marka | WiseChip |
| panel eredua | UG-2864ASYPG01 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 2.4 inch |
| ebazpena | 128×64 |
| eremu aktiboa | 55.01×27.49 mm |
| eskema | 60.5×37 mm |
| azalera | |
| distira | 80 cd/m² (Typ.) |
| kontraste-erlazioa | |
| bistaratzeko koloreak | Mono(Yellow) |
| ikuspegi angelua | |
| gidariaren ic | Built-in SSD1309 |
| seinale interfazea | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| aplikazio | IA |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
| AA121SK26 | Mitsubishi | 12.1 | 800×600 |
| AA121XK04 | Mitsubishi | 12.1 | 1024×768 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| LQ150X1LG55 | SHARP | 15.0 | 1024×768 |
| M101GWN9 R0 | IVO | 10.1 | 1024×600 |
| MD640.400-50 | FINLUX | 9.1 | 640×400 |
| NL128102AC28-07 | NLT | 18.1 | 1280×1024 |
| NL6448AC30-12 | NLT | 9.4 | 640×480 |
| SG12232A | Other | 2.2 | 122×32 |
| TFD60W20MS | TOSHIBA | 6.0 | 320×240 |
