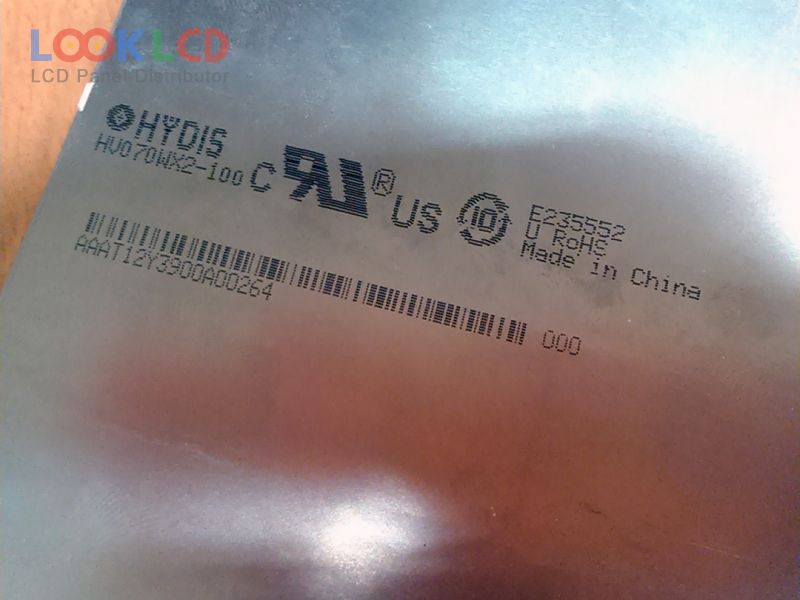

| PartZenbakia | HV070WX2-100 |
| Marka | HYDIS |
| Tamaina | 7.0 |
| Aplikazio | PAD |
| Ebazpena | 800×1280 |
| Konposizioa | LCM |
| Distira | 450 |
| CR | 700:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HYDIS |
| panel eredua | HV070WX2-100 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×1280 , WXGA |
| bistaratzeko modua | HFFS, Normally Black, Transmissive |
| eremu aktiboa | 94.2×150.72 mm |
| eskema | 104.32×161.67×3.75 mm |
| azalera | |
| distira | 450 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193150% |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 5S5PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
