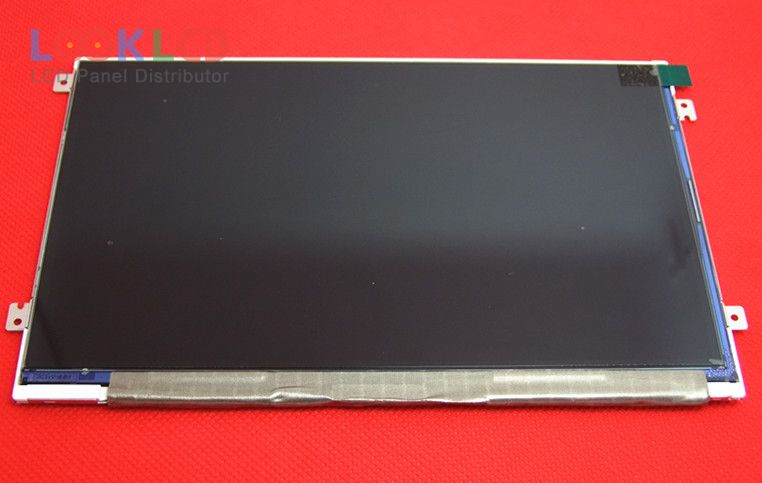

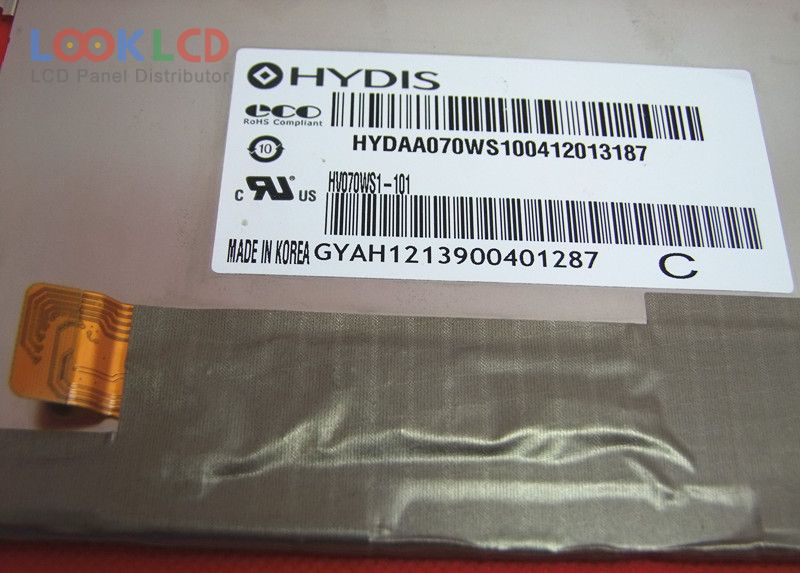

| PartZenbakia | HV070WS1-101 |
| Marka | HYDIS |
| Tamaina | 7.0 |
| Aplikazio | MP4 |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HYDIS |
| panel eredua | HV070WS1-101 2 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | HFFS, Normally Black, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 163.6×102.9×2.67 mm |
| azalera | |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 50 (Typ.)(Tr+Td) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 5S4PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit) + SPI, 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | MP4 |
| HV070WS1-100 | HYDIS | 7.0 | 1024×600 |
| HV070WS1-101 | HYDIS | 7.0 | 1024×600 |
| HV070WS1-105 | HYDIS | 7.0 | 1024×600 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| HV070WS1-1E2 | HYDIS | 7.0 | 1024×600 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| HV070WX2-1E0 | HYDIS | 7.0 | 800×1280 |
| LQ070T5BG01 | SHARP | 7.0 | 480×234 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| BA070WS1-402 | BOE | 7.0 | 1024×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
