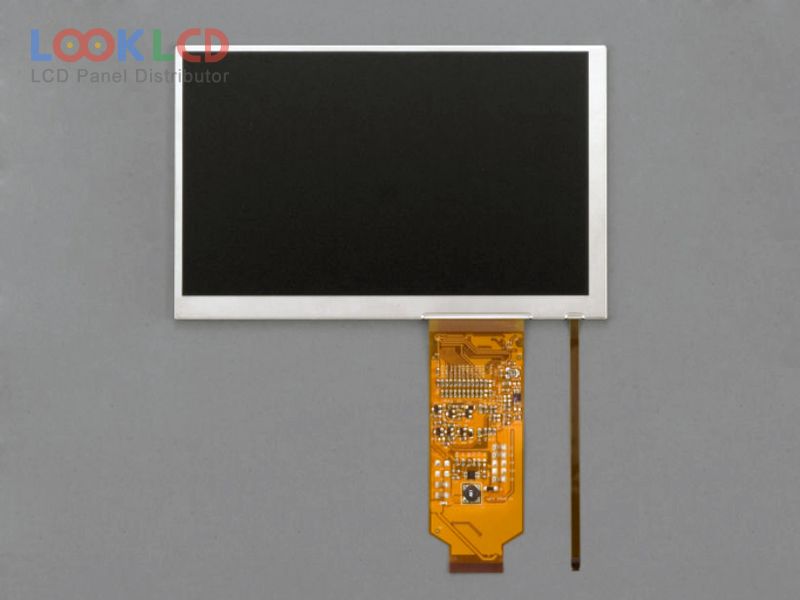

| PartZenbakia | 70WVW1A |
| Marka | SII |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 450 |
| CR | 400:1 |
| Koloreak | 16.2M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SII |
| panel eredua | 70WVW1A |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 165×105.8×3.65 mm |
| azalera | Antiglare |
| distira | 450 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 16.2M (6-bit + Dithering), CIE193145% |
| erantzun denbora | 5/11 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 8S3PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | CNS |
| 70WVW1A | SII | 7.0 | 800×480 |
| 70WVW1T | SII | 7.0 | 800×480 |
| 70WVW2A | SII | 7.0 | 800×480 |
| 70WVW2T | SII | 7.0 | 800×480 |
| 70WVW3A | SII | 7.0 | 800×480 |
| 70WVW3T | SII | 7.0 | 800×480 |
| 70WVW4A | SII | 7.0 | 800×480 |
| 70WVW5A | SII | 7.0 | 800×480 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| TCG070WVLBA-A00 | Kyocera | 7.0 | 800×480 |
| AV080WSM-NW0 | BOE | 8.0 | 1024×600 |
| C043FW01 V0 | AUO | 4.3 | 480×234 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| G150X1-L02 | Innolux | 15.0 | 1024×768 |
| LB040Q02-TD05 | LG Display | 4.0 | 320×240 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ065T5AR05 | SHARP | 6.5 | 400×234 |
| LQ070Y5DR04 | SHARP | 7.0 | 800×480 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| PA050XSG | E Ink | 5.0 | 320×234 |
