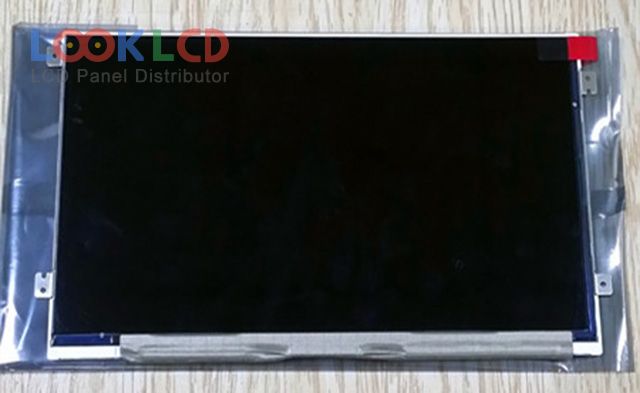

| PartZenbakia | HV070WS1-105 |
| Marka | HYDIS |
| Tamaina | 7.0 |
| Aplikazio | PAD |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HYDIS |
| panel eredua | HV070WS1-105 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | ADS, Normally Black, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 163.6×102.9×2.67 mm |
| azalera | |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC) |
| erantzun denbora | 50 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 5S4PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit) + SPI, 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
