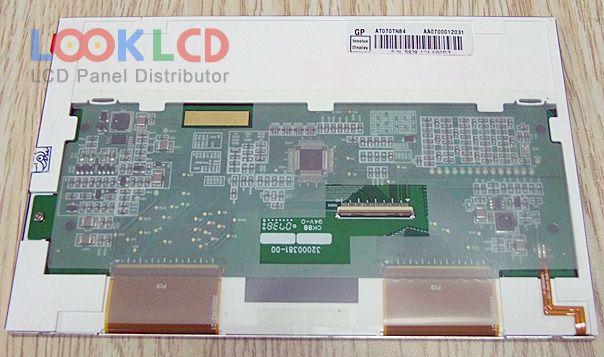

| PartZenbakia | AT070TN84 |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | DPF |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 450 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | INNOLUX |
| panel eredua | AT070TN84 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 165×104×5.8 mm |
| azalera | Antiglare |
| distira | 450 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | TTL (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.)(VCC) |
| aplikazio | DPF |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| DLC0700EZG-1 | Other | 7.0 | 800×480 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| LTP700WV-F02 | Samsung | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| PM102ZY2 | E Ink | 10.2 | 1024×600 |
| TM102WV-A02-03 | SANYO | 10.2 | 800×480 |
