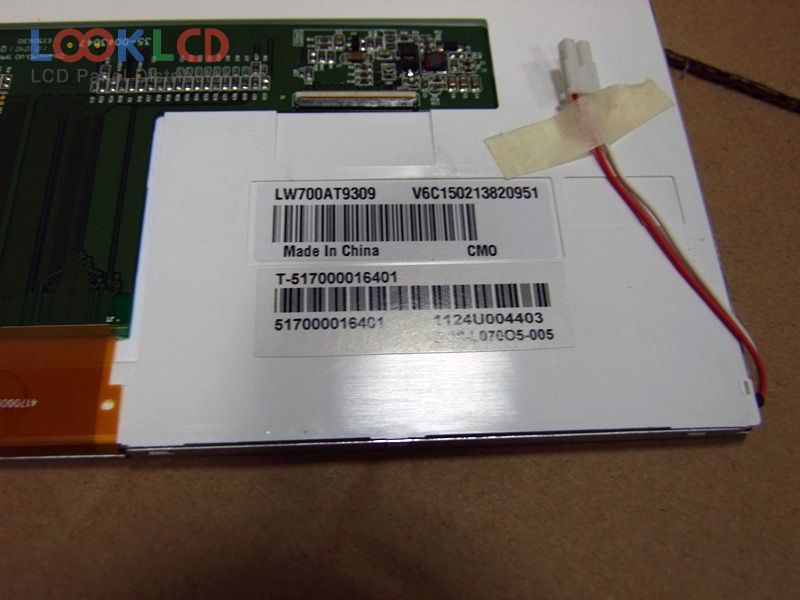

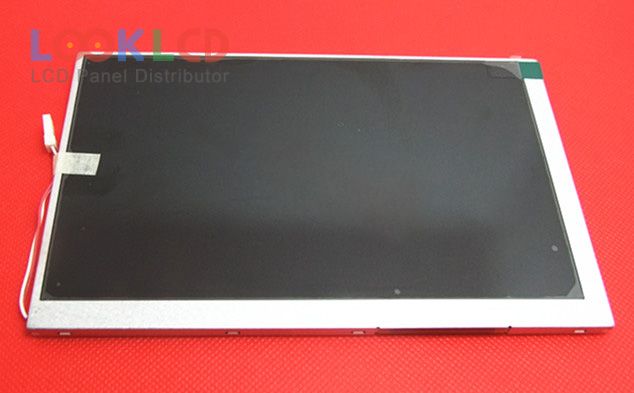

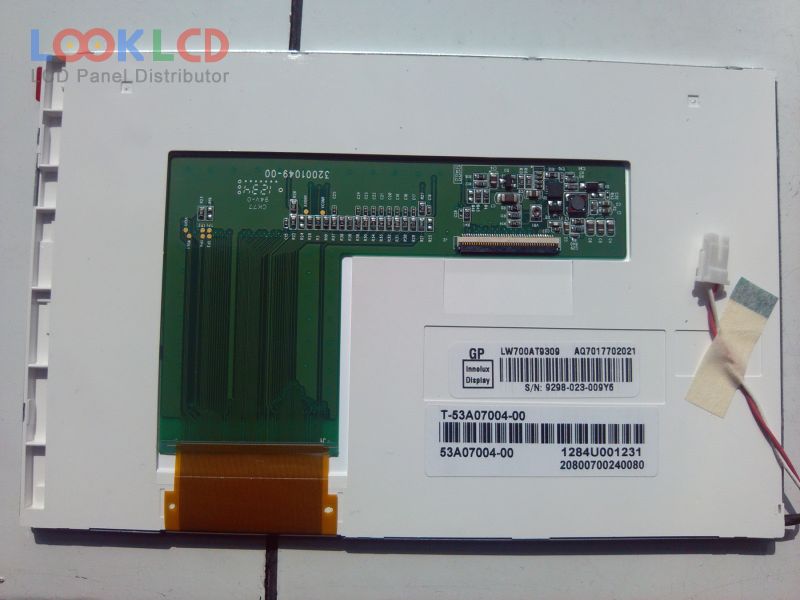

| PartZenbakia | LW700AT9309 |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | DPF |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | ChiHsin |
| panel eredua | LW700AT9309 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 165×104.44×5.9 mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 5/11 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S8PWLEDWithout Driver |
| seinale interfazea | TTL (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | DPF |
