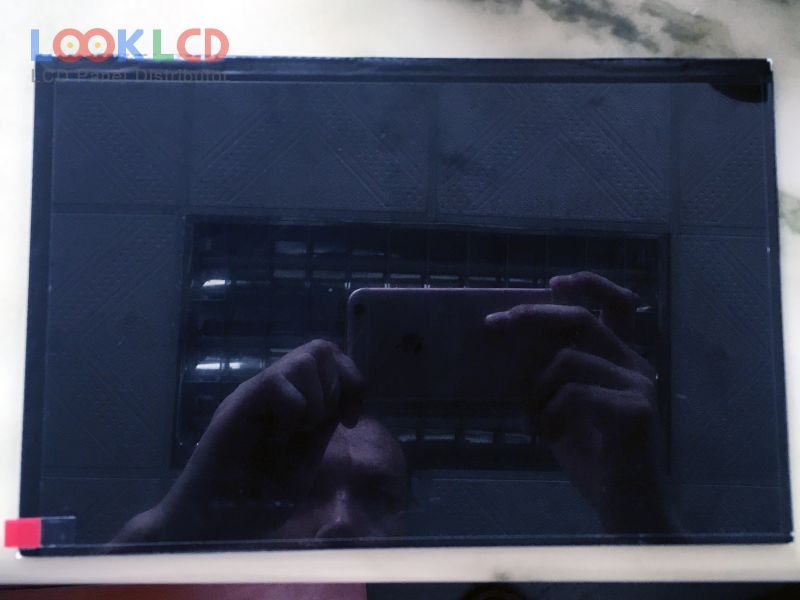

| PartZenbakia | TM101JDHP01 |
| Marka | Tianma |
| Tamaina | 10.1 |
| Aplikazio | IA |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | TIANMA |
| panel eredua | TM101JDHP01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | SFT, Normally Black, Transmissive |
| eremu aktiboa | 216.96×135.6 mm |
| eskema | 229.46×149.1×4.3 mm |
| azalera | Hard coating |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193150% |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S11PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 40 pins |
| sarrerako tentsioa | 3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikazio | IA |
