| PartZenbakia | TM055XDHP10 |
| Marka | Tianma |
| Tamaina | 5.5 |
| Aplikazio | MPH |
| Ebazpena | 540×960 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | TIANMA |
| panel eredua | TM055XDHP10 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.5 inch |
| ebazpena | 540(RGB)×960 , qHD |
| bistaratzeko modua | FFS, Normally Black, Transmissive |
| eremu aktiboa | 68.04×120.96 mm |
| eskema | 72.14×130.86×1.95 mm |
| azalera | Antiglare (Haze 42%) |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193170% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 80Hz |
| lanpara mota | 5S2PWLEDWithout Driver |

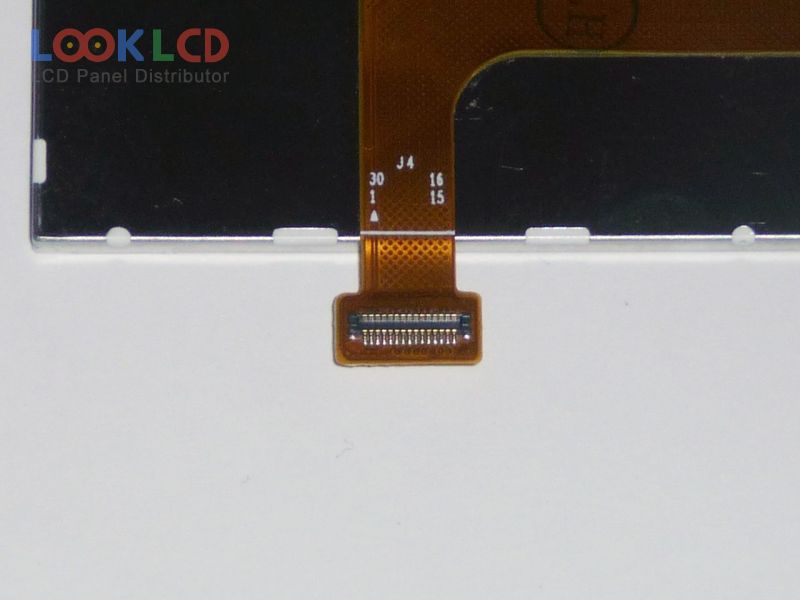

| seinale interfazea | MIPI (2 data lanes), 30 pins |
| sarrerako tentsioa | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| aplikazio | MPH |
| BV055FHM-N00 | BOE | 5.5 | 1080×1920 |
| CLAN055WA41 3XB | CPT | 5.5 | 720×1280 |
| H546DLB01.1 | AUO | 5.5 | 1080×1920 |
| LH550WF1-SD01 | LG Display | 5.5 | 1080×1920 |
| LQ055W1GC01 | SHARP | 5.5 | 1024×600 |
| LTA055B0R0A | TOSHIBA | 5.5 | 480×234 |
| TM055JDHP71 | Tianma | 5.5 | 720×1280 |
| TM055JVZG02 | Tianma | 5.5 | 720×1280 |
| TM055XDHP10 | Tianma | 5.5 | 540×960 |
| UG-5664ASGGF01 | WiseChip | 5.5 | 256×64 |
| AMS429QC08 | Samsung | 4.3 | 540×960 |
| E555HBM2 | EDO | 5.5 | 720×1280 |
| H429AL02.0 | AUO | 4.3 | 540×960 |
| H430VL02 V1 | AUO | 4.3 | 480×800 |
| H495TAN01.1 | AUO | 5.0 | 720×1280 |
| OEL9M0053-Y-E | Other | 1.6 | 128×64 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
| TX09D83VM3CEA | KOE | 3.5 | 240×320 |
