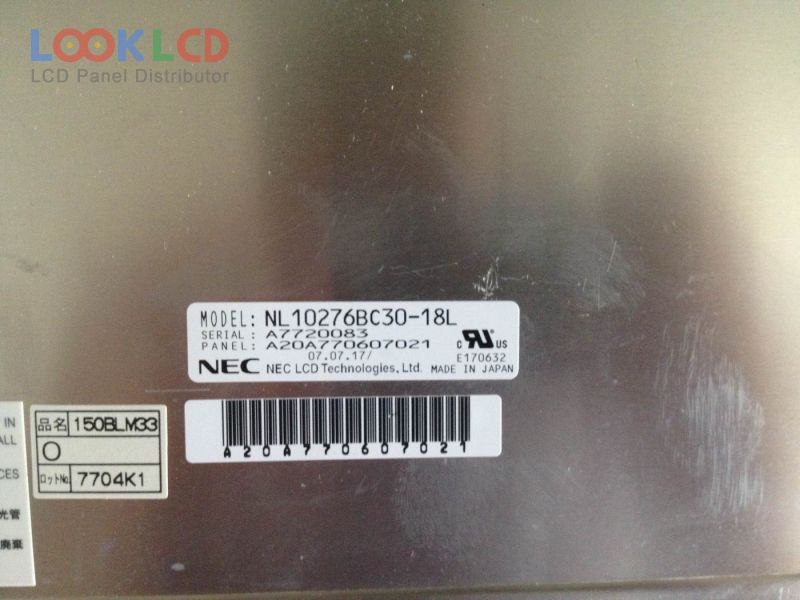

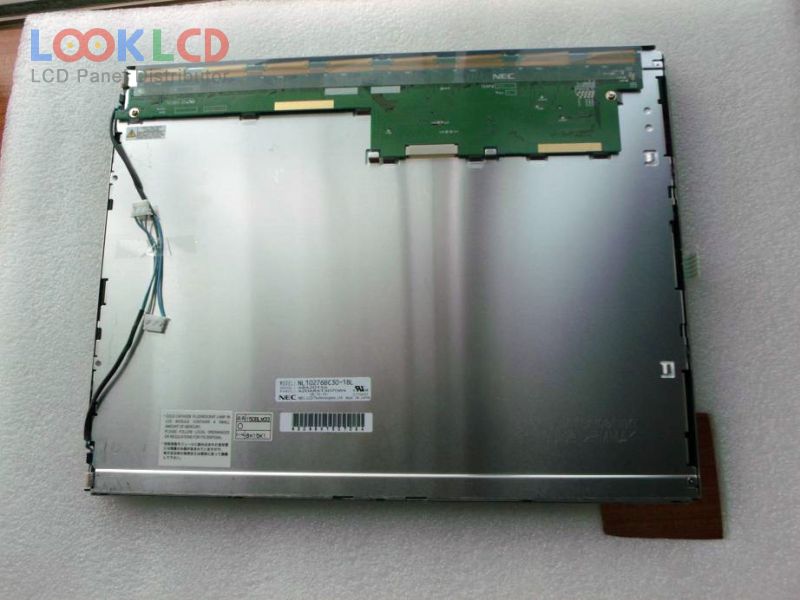

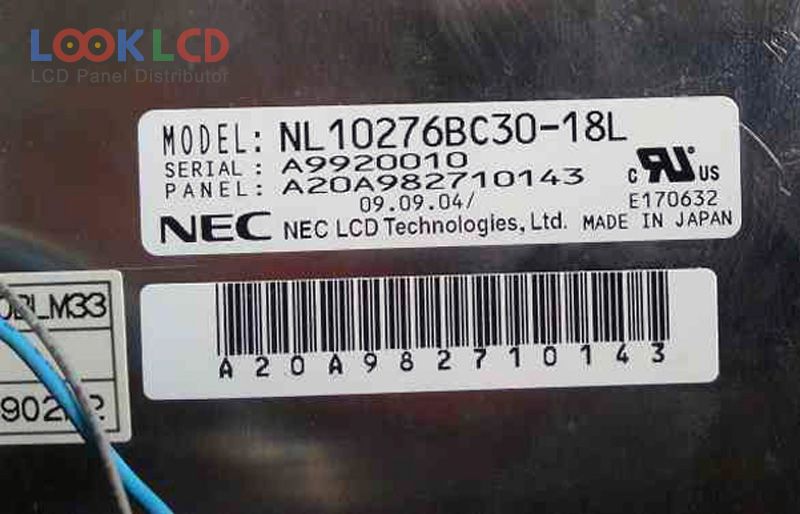

| PartZenbakia | NL10276BC30-18L |
| Marka | NLT |
| Tamaina | 15.0 |
| Aplikazio | IA |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 270 |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL10276BC30-18L |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.0 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 304.128×228.096 mm |
| eskema | 326.5×253.5×17 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 270 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193140% |
| erantzun denbora | 4/14 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| rohs: | |
| aplikazio | IA |
| NL10276AC28-05R | NLT | 14.1 | 1024×768 |
| NL10276AC30-04R | NLT | 15.0 | 1024×768 |
| NL10276AC30-07 | NLT | 15.0 | 1024×768 |
| NL10276BC16-06D | NLT | 8.4 | 1024×768 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| NL10276BC30-17 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| NL10276BC30-38B | NLT | 15.0 | 1024×768 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| AA121SL07 | Mitsubishi | 12.1 | 800×600 |
| AM-1024768MTMQW-00H | AMPIRE | 10.4 | 1024×768 |
| HV121X02-100 | HYDIS | 12.1 | 1024×768 |
| KCB6448BSTT-X11 | Kyocera | 10.4 | 640×480 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
| KCS057QV1AJ-G20 | Kyocera | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ10D41 | SHARP | 10.4 | 640×480 |
| LQ121S1LG81 | SHARP | 12.1 | 800×600 |
| OEL9M0073-R-E | Other | 1.0 | 128×64 |
