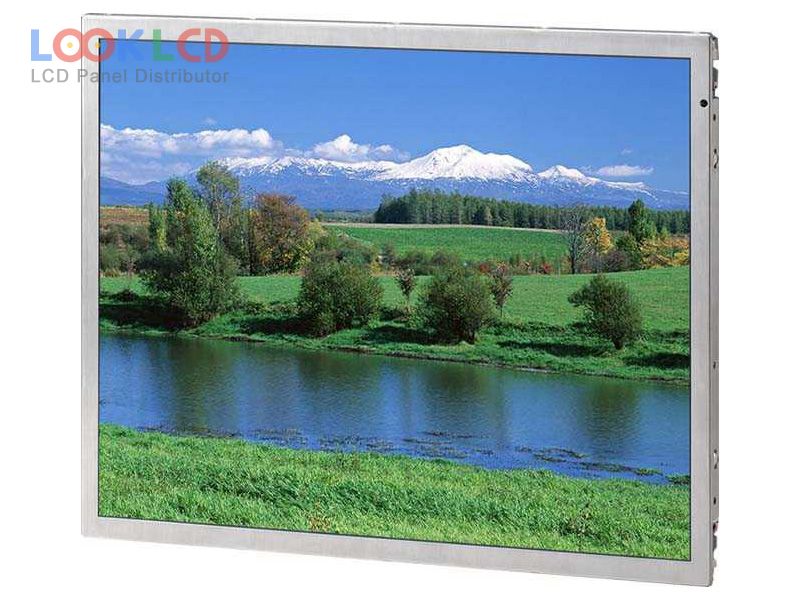

| PartZenbakia | NL10276BC30-38B |
| Marka | NLT |
| Tamaina | 15.0 |
| Aplikazio | IA |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 700:1 |
| Koloreak | 16.7M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL10276BC30-38B |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.0 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | UA-SFT, Normally Black, Transmissive |
| eremu aktiboa | 304.128×228.096 mm |
| eskema | 326.5×253.5 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193172% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
