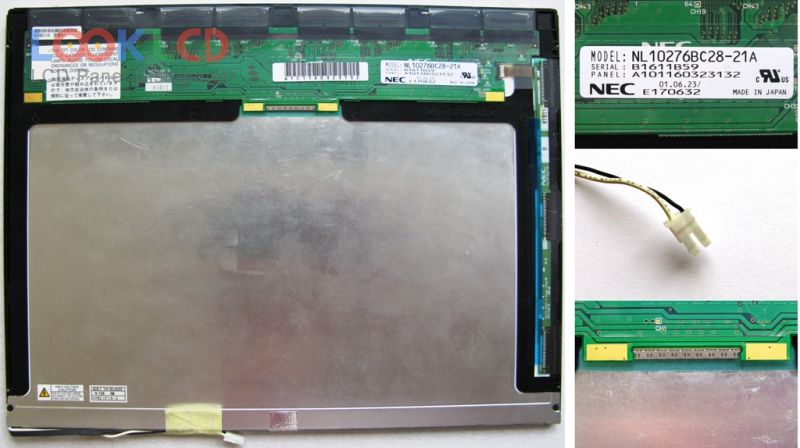

| PartZenbakia | NL10276BC28-21A |
| Marka | NLT |
| Tamaina | 14.1 |
| Aplikazio | NBPC |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 150 |
| CR | 150:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL10276BC28-21A |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 14.1 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 285.696×214.272 mm |
| eskema | 298×225.5×5.7 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Hard coating (3H) |
| distira | 150 cd/m² (Typ.) |
| kontraste-erlazioa | 150:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | 15/50 (Typ.)(Tr/Td) |
| ikuspegi angelua | 50/50/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| NL10276BC16-06 | NLT | 8.4 | 1024×768 |
| NL10276BC16-06D | NLT | 8.4 | 1024×768 |
| NL10276BC20-18F | NLT | 10.4 | 1024×768 |
| NL10276BC24-21 | NLT | 12.1 | 1024×768 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| NL10276BC30-17 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| NL10276BC30-33D | NLT | 15.0 | 1024×768 |
| B133XW02 V0 | AUO | 13.3 | 1366×768 |
| B140RW02 V1 | AUO | 14.0 | 1600×900 |
| LP133WP1-TJAA | LG Display | 13.3 | 1440×900 |
| LP140WF5-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP141WX3-TLN2 | LG Display | 14.1 | 1280×800 |
| LP171WU6-TLA2 | LG Display | 17.1 | 1920×1200 |
| LTD121EWEK | TOSHIBA | 12.1 | 1280×800 |
| LTN140KT04-201 | Samsung | 14.0 | 1600×900 |
| LTN141AT12-J01 | Samsung | 14.1 | 1280×800 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
