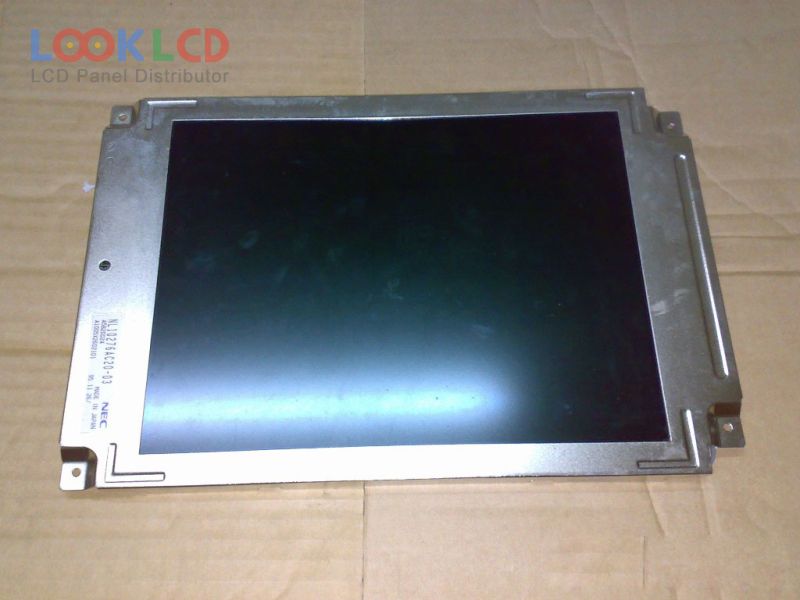

| PartZenbakia | NL10276AC20-03 |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 85 |
| CR | 100:1 |
| Koloreak | 4096 |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL10276AC20-03 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.968×158.976 mm |
| eskema | 282×190×13 mm |
| azalera | |
| distira | 85 cd/m² (Typ.) |
| kontraste-erlazioa | 100:1 (Typ.) |
| bistaratzeko koloreak | 4096 (4-bit), CIE193140% |
| erantzun denbora | 40 (Min.)(Tr+Td) |
| ikuspegi angelua | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLEmbedded (Inverter) |
| seinale interfazea | TTL (1 ch, 4-bit), 65 pins |
| sarrerako tentsioa | 5.0/12.0V (Typ.)(VCC/VDD) |
| aplikazio | IA |
