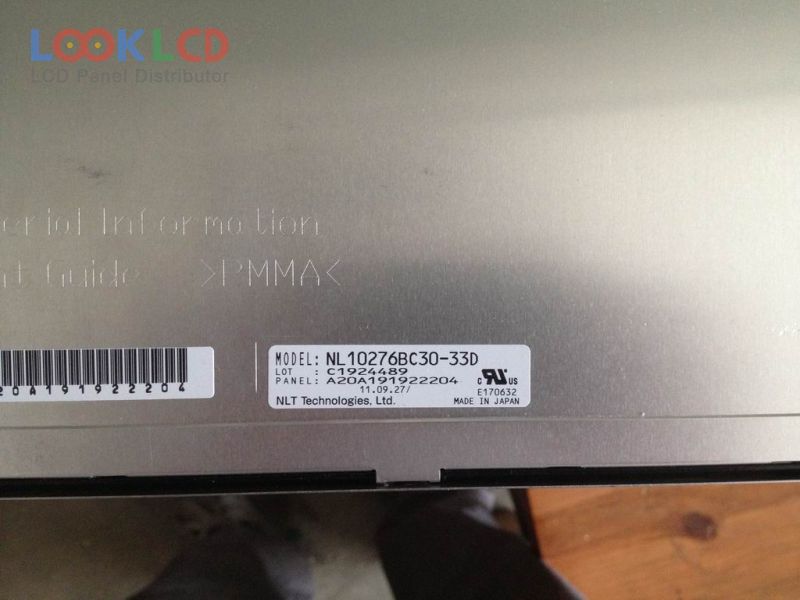

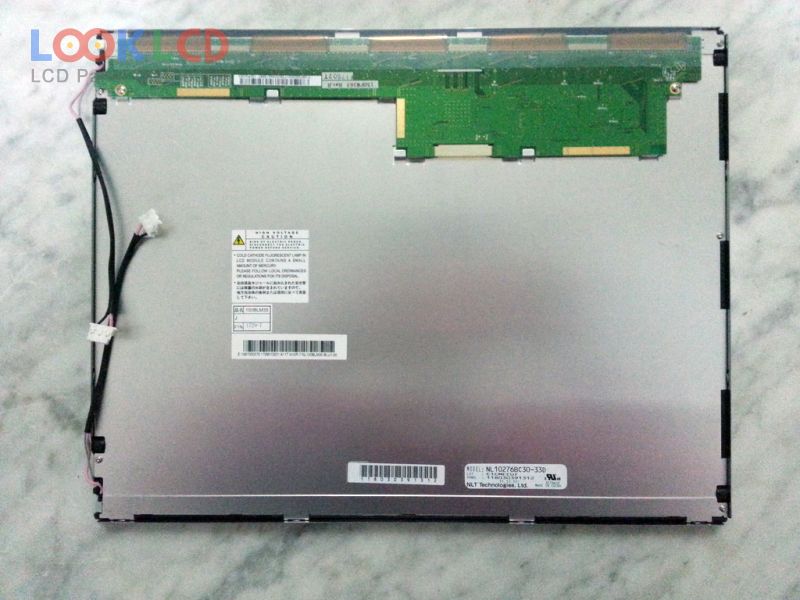

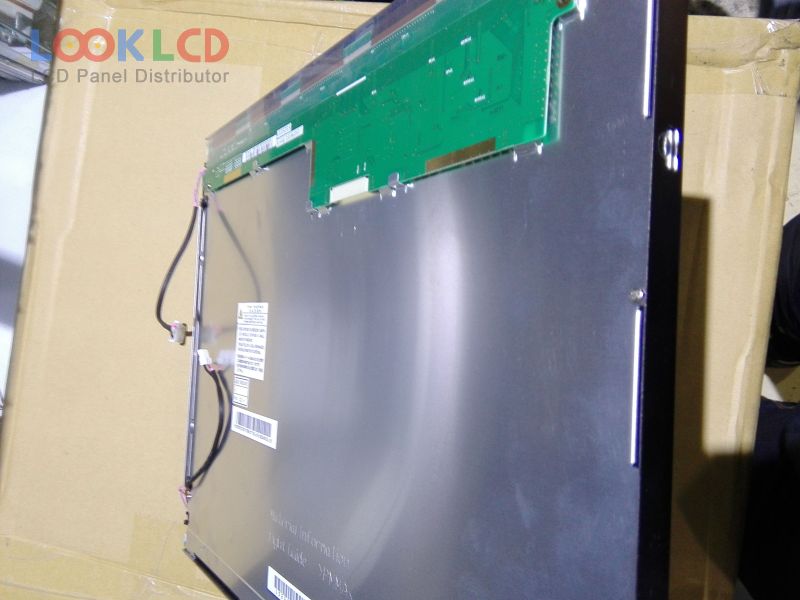

| PartZenbakia | NL10276BC30-33D |
| Marka | NLT |
| Tamaina | 15.0 |
| Aplikazio | IA |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL10276BC30-33D |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.0 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 304.128×228.096 mm |
| eskema | 326.5×253.5×12 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193150% |
| erantzun denbora | 3/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
| NL10276AC28-05R | NLT | 14.1 | 1024×768 |
| NL10276BC20-04 | NLT | 10.4 | 1024×768 |
| NL10276BC20-08 | NLT | 10.4 | 1024×768 |
| NL10276BC24-13 | NLT | 12.1 | 1024×768 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NL10276BC24-21 | NLT | 12.1 | 1024×768 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| NL10276BC30-24D | NLT | 15.0 | 1024×768 |
| NL10276BC30-38B | NLT | 15.0 | 1024×768 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| A101AIE40L0 | Aptus | 10.1 | 1280×720 |
| AA084XB01 | Mitsubishi | 8.4 | 1024×768 |
| AA121SN03 | Mitsubishi | 12.1 | 800×600 |
| AA121XK01 | Mitsubishi | 12.1 | 1024×768 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| G260J1-L05 | Innolux | 25.5 | 1920×1200 |
| KS3224ASTT-FW-X20 | Kyocera | 5.7 | 320×240 |
| LM081HB1T01B | SHARP | 8.1 | 640×240 |
| LQ10D341 | SHARP | 10.4 | 640×480 |
| TX26D05VM1CAA | KOE | 10.4 | 640×480 |
