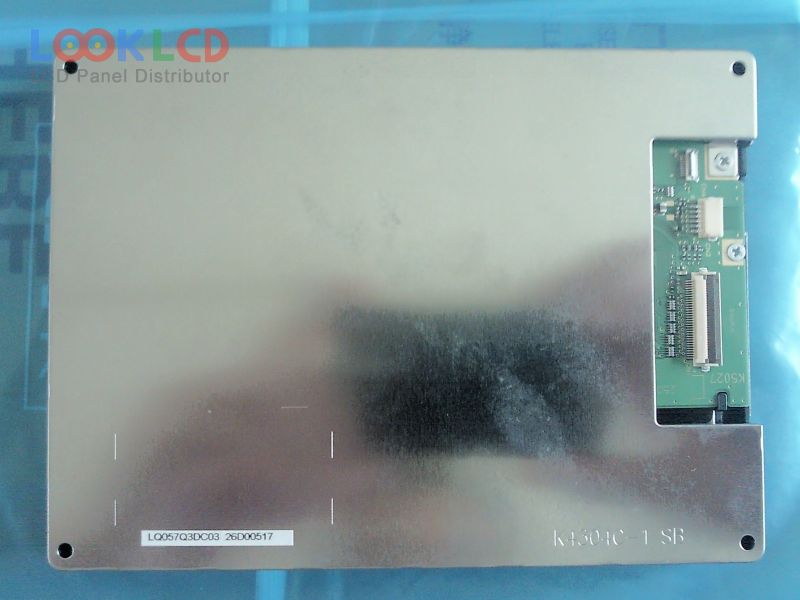

| PartZenbakia | LQ057Q3DC03 |
| Marka | SHARP |
| Tamaina | 5.7 |
| Aplikazio | IA |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 350:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ057Q3DC03 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.7 inch |
| ebazpena | 320×240(RGB) , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 115.2×86.4 mm |
| eskema | 144×104.6×12.8 mm |
| azalera | Glare (Haze 0%), Hard coating (2H) |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/65 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 33 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
