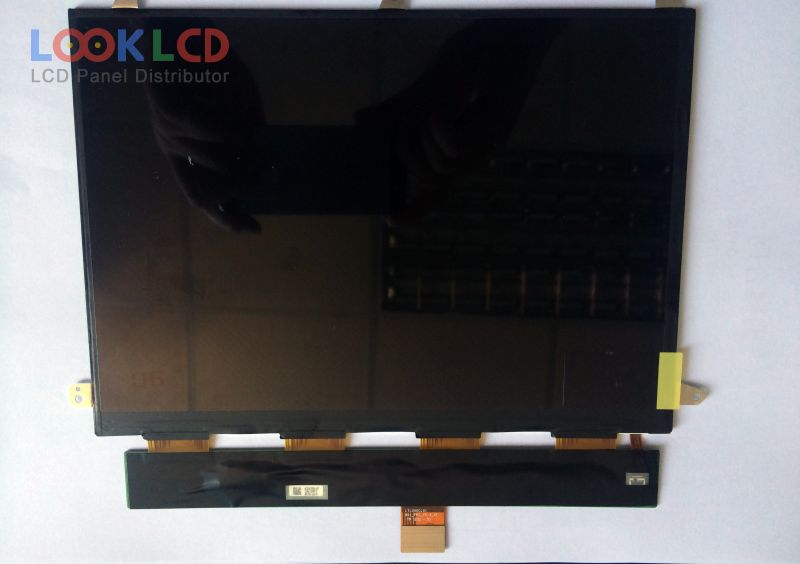

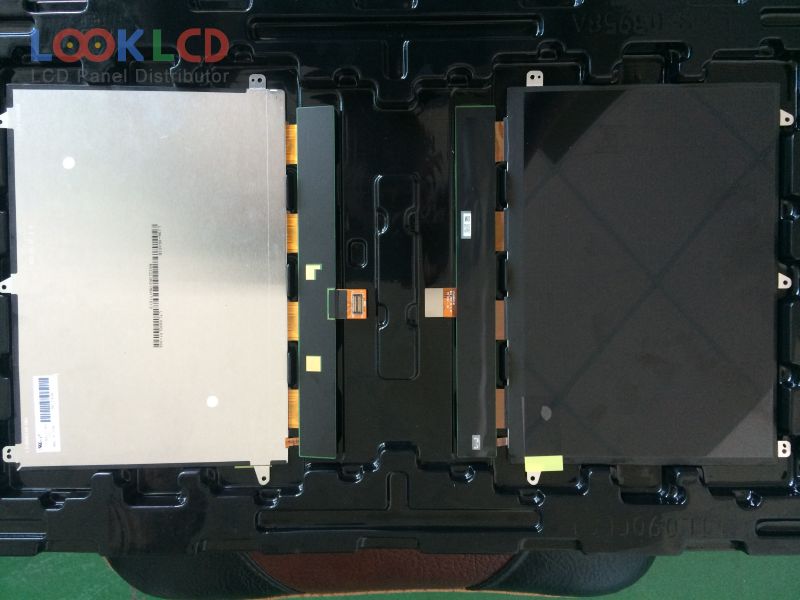

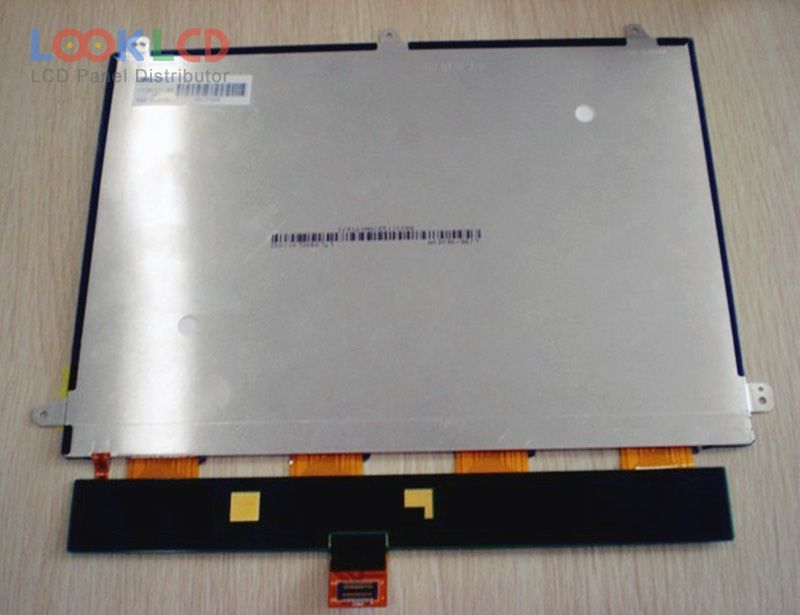

| PartZenbakia | LTL090CL01-W02 |
| Marka | Samsung |
| Tamaina | 9.0 |
| Aplikazio | PAD |
| Ebazpena | 1920×1280 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 800:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | SAMSUNG |
| panel eredua | LTL090CL01-W02 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 9.0 inch |
| ebazpena | 1920(RGB)×1280 |
| bistaratzeko modua | PLS, Normally Black, Transmissive |
| eremu aktiboa | 190.08×126.72 mm |
| eskema | 200.91×141.21×2.728 mm |
| azalera | |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193150% |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 7S5PWLEDWithout Driver |
| seinale interfazea | MIPI (4 data lanes), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| HSD090IDW1-A00 | HannStar | 9.0 | 800×480 |
| LQ090Y3DG01 | SHARP | 9.0 | 800×480 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| TM090JDH01 | Tianma | 9.0 | 1280×800 |
| TX23D12VM0CAA | KOE | 9.0 | 800×480 |
| TX23D86VM0BAA | KOE | 9.0 | 1280×768 |
| B080UAN01.2 | AUO | 8.0 | 1200×1920 |
| BP096WX7-100 | BOE | 9.6 | 800×1280 |
| CLAP070WP03XG | CPT | 7.0 | 800×1280 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LP097X02-SLA2 | LG Display | 9.7 | 1024×768 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| LTL106AL01-002 | Samsung | 10.6 | 1366×768 |
| Q101IRE-GB1 | Innolux | 10.1 | 1280×800 |
| VVX10F034N00 | Panasonic | 10.1 | 1920×1200 |
