| PartZenbakia | LTL106AL01-002 |
| Marka | Samsung |
| Tamaina | 10.6 |
| Aplikazio | PAD |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |

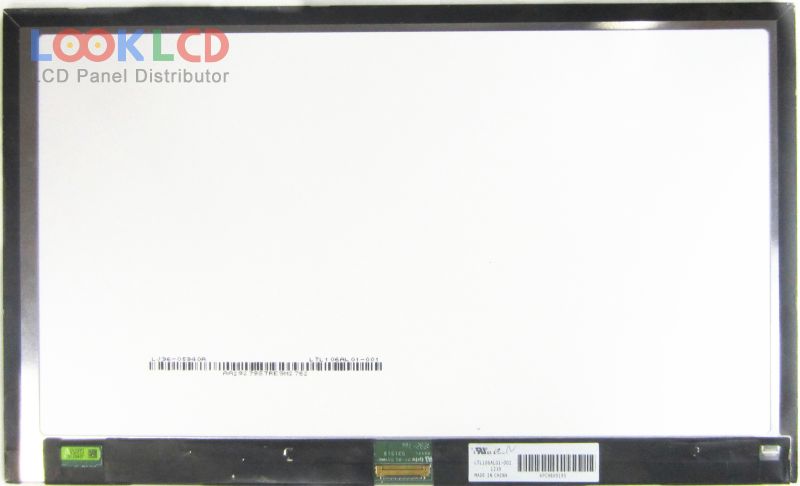

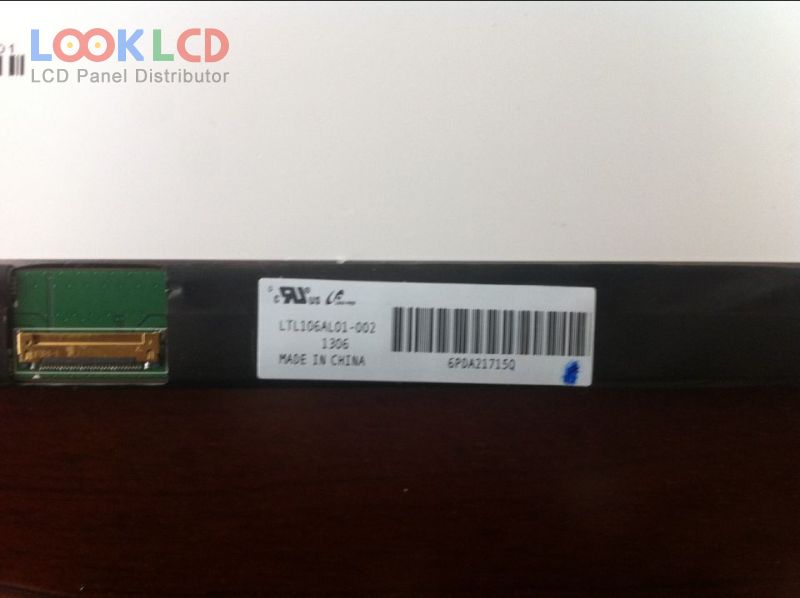

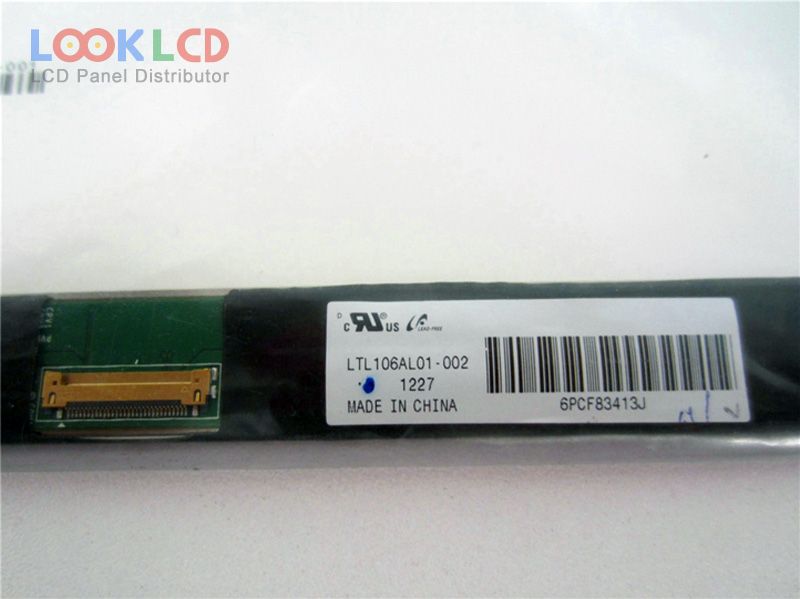

| panel eredua | LTL106AL01-002 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.6 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | PLS, Normally Black, Transmissive |
| eremu aktiboa | 234.72×132.03 mm |
| eskema | 246.52×149.02×5.2 mm |
| azalera | Glare (Haze 0%), Hard coating (2H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193150% |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
