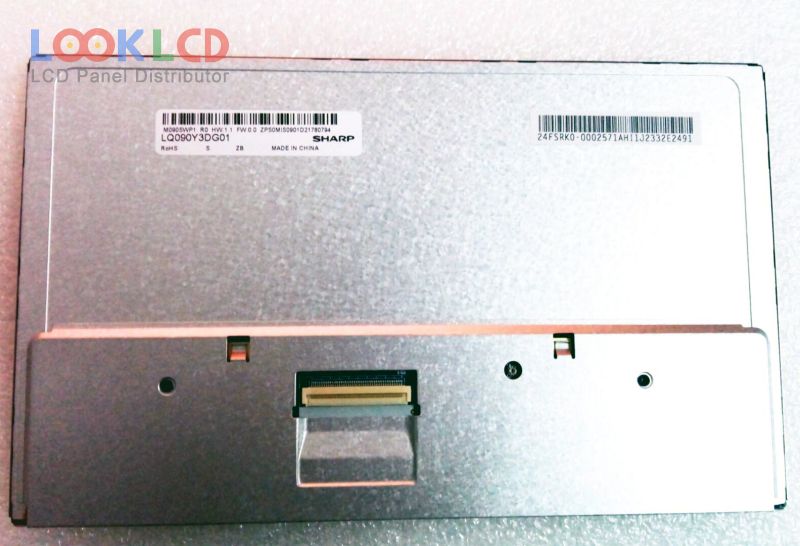

| PartZenbakia | LQ090Y3DG01 |
| Marka | SHARP |
| Tamaina | 9.0 |
| Aplikazio | DPF |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ090Y3DG01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 9.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 198×111.696 mm |
| eskema | 211.1×128.4 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | Parallel RGB (1 ch, 8-bit) |
| aplikazio | DPF |
| AA090AA01 | Mitsubishi | 9.0 | 960×540 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| HSD090IDW1-A00 | HannStar | 9.0 | 800×480 |
| LQ090Y3DG01 | SHARP | 9.0 | 800×480 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| LQ090Y3DG01 | SHARP | 9.0 | 800×480 |
| LTA120W1-T02 | Samsung | 12.0 | 800×480 |
| P64AN2WP02 | E Ink | 6.4 | 320×234 |
