Samsung LTL101AL02-T01 fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

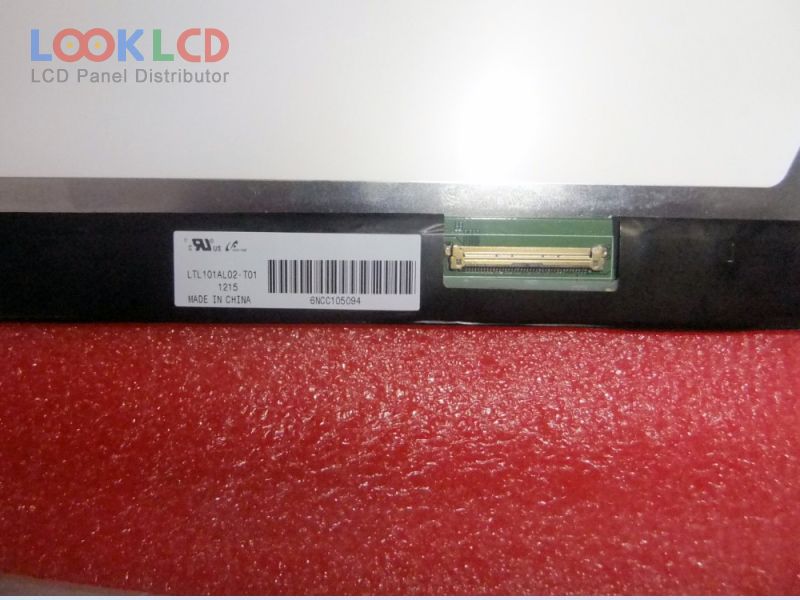

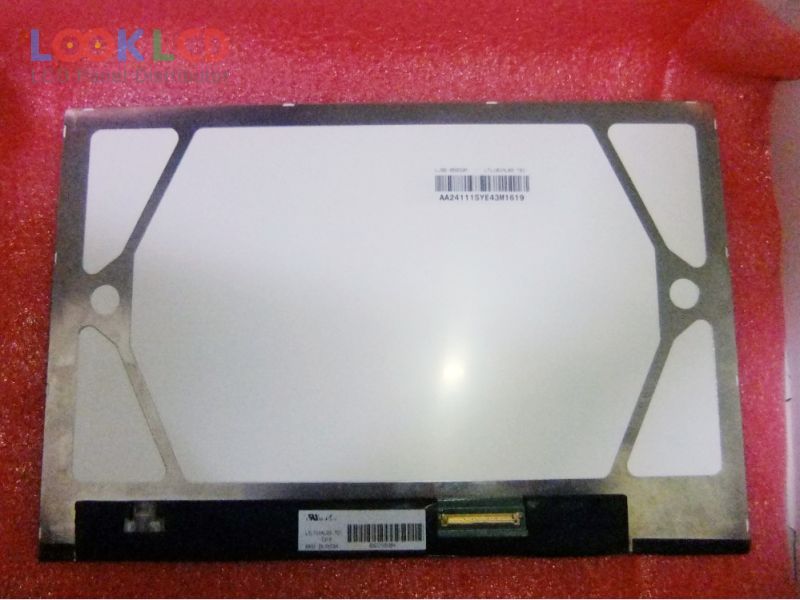

LTL101AL02-T01

LTL101AL02-T01
LTL101AL02-T01
LTL101AL02-T01 thumb LTL101AL02-T01 thumb
Marka
Samsung
Tamaina
10.1
Aplikazio
PAD
Ebazpena
1280×800
Konposizioa
LCM
Distira
400
CR
800:1
Koloreak
262K
Atzeko argia
WLED
Interfazea
LVDS
In Stock
30
Zehaztapenak

PartZenbakia LTL101AL02-T01
MarkaSamsung
Tamaina10.1
AplikazioPAD
Ebazpena1280×800
KonposizioaLCM
Distira400
CR800:1
Koloreak262K
Atzeko argiaWLED
InterfazeaLVDS
panel markaSAMSUNG
panel ereduaLTL101AL02-T01
panel mota a-Si TFT-LCD , LCM
panelaren tamaina10.1 inch
ebazpena1280(RGB)×800 , WXGA
bistaratzeko moduaPLS, Normally Black, Transmissive
eremu aktiboa216.96×135.6 mm
eskema228.06×148.05×4.79 mm
azaleraHard coating (2H)
distira400 cd/m² (Typ.)
kontraste-erlazioa800:1 (Typ.)
bistaratzeko koloreak262K (6-bit), CIE193150%
erantzun denbora30 (Typ.)(Tr+Td)
ikuspegi angelua89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara mota9S4PWLEDEmbedded (LED Driver)
seinale interfazeaLVDS (1 ch, 6-bit), 40 pins
sarrerako tentsioa3.3V (Typ.)
aplikazioPAD
Familia Eredua
LTL101AL01-W01 Samsung 10.1 1280×800
LTL101AL02-T01 Samsung 10.1 1280×800
LTL101AL03-W01 Samsung 10.1 1280×800
LTL101AL06-002 Samsung 10.1 1280×800
LTL101AL06-003 Samsung 10.1 1280×800
LTL101AL06-104 Samsung 10.1 1280×800
LTL101AL06-801 Samsung 10.1 1280×800
LTL101AL06-803 Samsung 10.1 1280×800
LTL101AL06-W02 Samsung 10.1 1280×800
LTL101AL06-W14 Samsung 10.1 1280×800
