HannStar HSD101PWW1-B00-C11 fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD


HSD101PWW1-B00-C11

HSD101PWW1-B00-C11

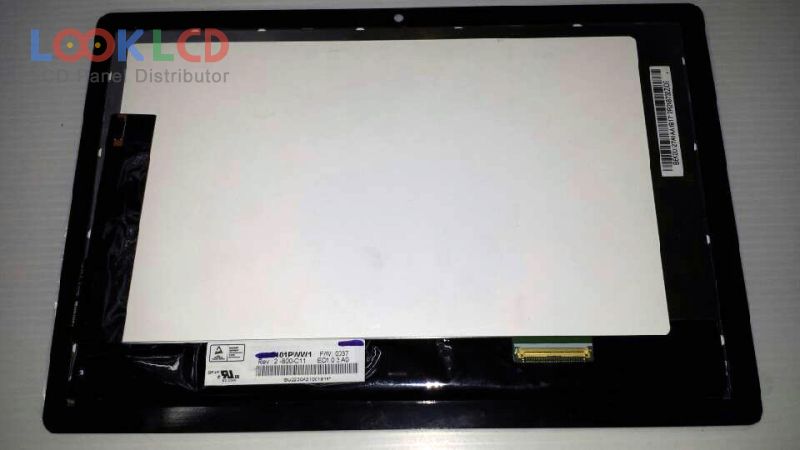

HSD101PWW1-B00-C11 thumb
Marka
HannStar
Tamaina
10.1
Aplikazio
PAD
Ebazpena
1280×800
Konposizioa
Assembly
Distira
290
CR
800:1
Koloreak
262K
Atzeko argia
WLED
Interfazea
LVDS
In Stock
1386
Zehaztapenak

PartZenbakia HSD101PWW1-B00-C11
MarkaHannStar
Tamaina10.1
AplikazioPAD
Ebazpena1280×800
KonposizioaAssembly
Distira290
CR800:1
Koloreak262K
Atzeko argiaWLED
InterfazeaLVDS
panel markaHannStar
panel ereduaHSD101PWW1-B00-C11
panel mota a-Si TFT-LCD , Assembly
panelaren tamaina10.1 inch
ebazpena1280(RGB)×800 , WXGA
eremu aktiboa216.96×135.6 mm
eskema250.8×169.8×7.05 mm
azaleraAnti Fingerprint
distira290 cd/m² (Typ.)
kontraste-erlazioa800:1 (Typ.)
bistaratzeko koloreak262K (6-bit), CIE193145%
ikuspegi angelua89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
seinale interfazeaLVDS (1 ch, 6-bit), 40 pins
sarrerako tentsioa3.3V (Typ.)
aplikazioPAD
Familia Eredua
HSD101PWW1-A00 HannStar 10.1 1280×800
HSD101PWW1-A00 Rev.4 HannStar 10.1 1280×800
HSD101PWW1-B00 HannStar 10.1 1280×800
HSD101PWW1-B00-C11 HannStar 10.1 1280×800
HSD101PWW1-F00 HannStar 10.1 1280×800
HSD101PWW1-F01 HannStar 10.1 1280×800
HSD101PWW1-G10 HannStar 10.1 1280×800
HSD101PWW1-H00 HannStar 10.1 1280×800
HSD101PWW2-A00 HannStar 10.1 1280×800
HSD101PWW2-A01 HannStar 10.1 1280×800
