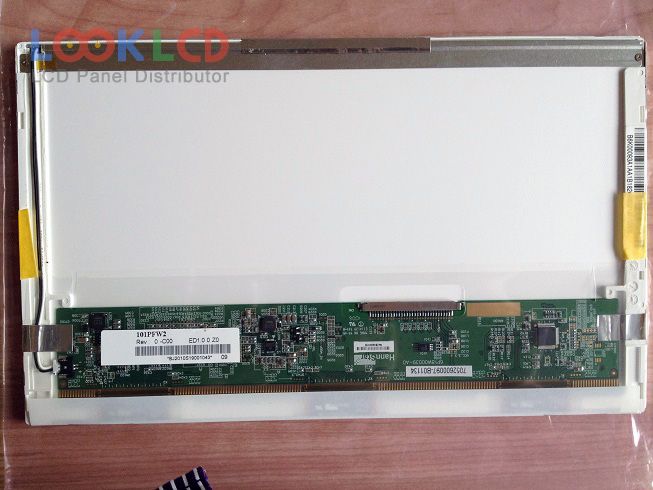

| PartZenbakia | HSD101PFW2-C00 |
| Marka | HannStar |
| Tamaina | 10.1 |
| Aplikazio | DPF |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HannStar |
| panel eredua | HSD101PFW2-C00 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222.72×125.28 mm |
| eskema | 235×143×5.3 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | DPF |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| HSD101PWW1-A00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| LQ085Y3DG12 | SHARP | 8.5 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| TM102WV-A02-03 | SANYO | 10.2 | 800×480 |
