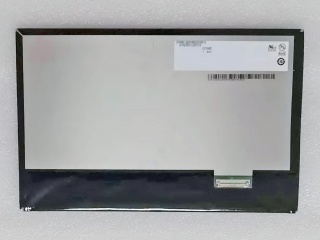

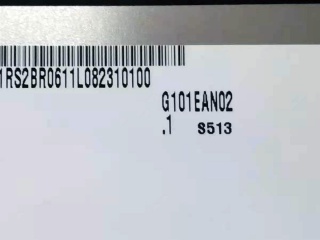

| PartZenbakia | G101EAN02.1 |
| Marka | AUO |
| Tamaina | 10.1 |
| Aplikazio | Industrial |
| Ebazpena | 1280×800 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| marka | AUO |
| diagonalaren tamaina | 10.1 inch |
| pixel formatua | 1280(RGB)×800 [WXGA] 149PPI |
| eremu aktiboa | 216.96(H)×135.6(V) mm |
| bezela eremua | - |
| luminantzia | 400 cd/m² (Typ.) |
| ikusi norabidea | Symmetry |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| euskarria kolorea | 16.7M 50% NTSC |
| pisua | 195g (Max.) |
| fotograma-tasa | 60Hz |
| interfaze mota | LVDS (1 ch, 8-bit) , 40 pins Connector |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| eredua | G101EAN02.1 |
| mota | a-Si TFT-LCD , LCM |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | 227.72(H)×147.8(V) ×4.8(D) mm |
| tratamendua | Hard coating |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| erantzun denbora | 29 (Typ.)(Tr+Td) |
| funtzionamendu modua | AHVA, Normally Black, Transmissive |
| argi iturria | WLED , 30K hours , With LED Driver |
| entzat diseinatua | Industrial |
| ukipen-panela | Without |
