AUO B101UAN01.7 HW2A fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

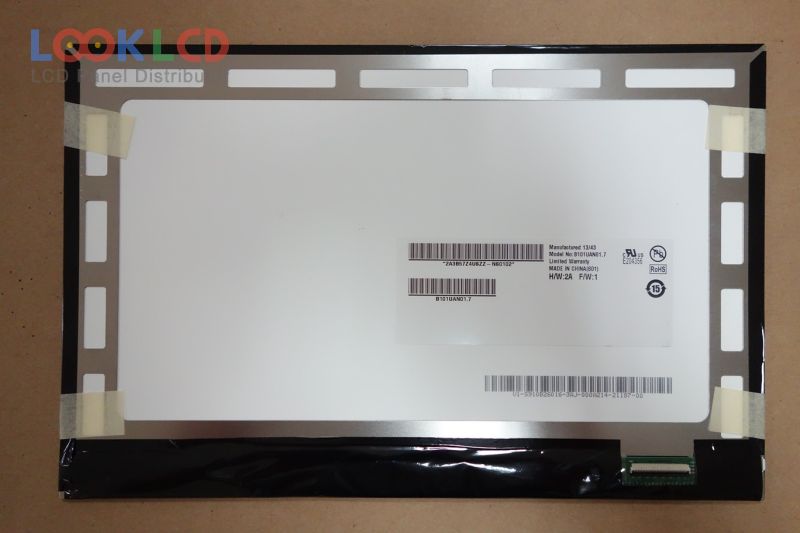

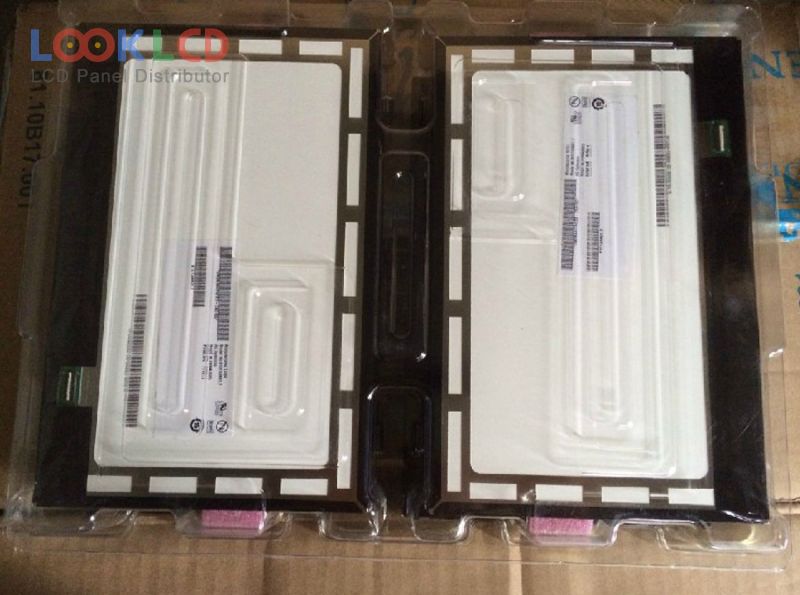

B101UAN01.7 HW2A

B101UAN01.7 HW2A
B101UAN01.7 HW2A
B101UAN01.7 HW2A
B101UAN01.7 HW2A thumb B101UAN01.7 HW2A thumb B101UAN01.7 HW2A thumb
Marka
AUO
Tamaina
10.1
Aplikazio
PAD
Ebazpena
1920×1200
Konposizioa
LCM
Distira
380
CR
800:1
Koloreak
16.7M
Atzeko argia
WLED
Interfazea
MIPI
In Stock
230
Zehaztapenak

PartZenbakia B101UAN01.7 HW2A
MarkaAUO
Tamaina10.1
AplikazioPAD
Ebazpena1920×1200
KonposizioaLCM
Distira380
CR800:1
Koloreak16.7M
Atzeko argiaWLED
InterfazeaMIPI
panel markaAUO
panel ereduaB101UAN01.7 HW2A
panel mota a-Si TFT-LCD , LCM
panelaren tamaina10.1 inch
ebazpena1920(RGB)×1200 , WUXGA
bistaratzeko moduaAHVA, Normally Black, Transmissive
eremu aktiboa216.81×135.5 mm
eskema227.72×147.8×5.35 mm
azaleraGlare (Haze 0%)
distira380 cd/m² (Typ.)
kontraste-erlazioa800:1 (Typ.)
bistaratzeko koloreak16.7M (8-bit), CIE193150%
erantzun denbora25 (Typ.)(Tr+Td)
ikuspegi angelua85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara motaWLEDEmbedded (LED Driver)

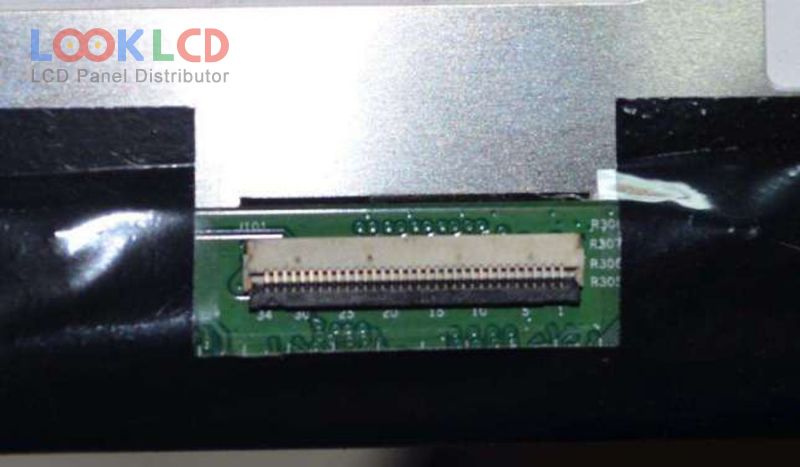

seinale interfazeaMIPI (4 data lanes), 34 pins
sarrerako tentsioa3.7V (Typ.)
aplikazioPAD
Familia Eredua
B101UAN01.1 AUO 10.1 1920×1200
B101UAN01.7 HW0A AUO 10.1 1920×1200
B101UAN01.7 HW1A AUO 10.1 1920×1200
B101UAN01.7 HW2A AUO 10.1 1920×1200
B101UAN01.9 AUO 10.1 1920×1200
B101UAN01.C AUO 10.1 1920×1200
B101UAN01.E AUO 10.1 1920×1200
B101UAN02.1 AUO 10.1 1920×1200
B101UAN07.0 AUO 10.1 1200×1920
B101UAN07.2 AUO 10.1 1200×1920
