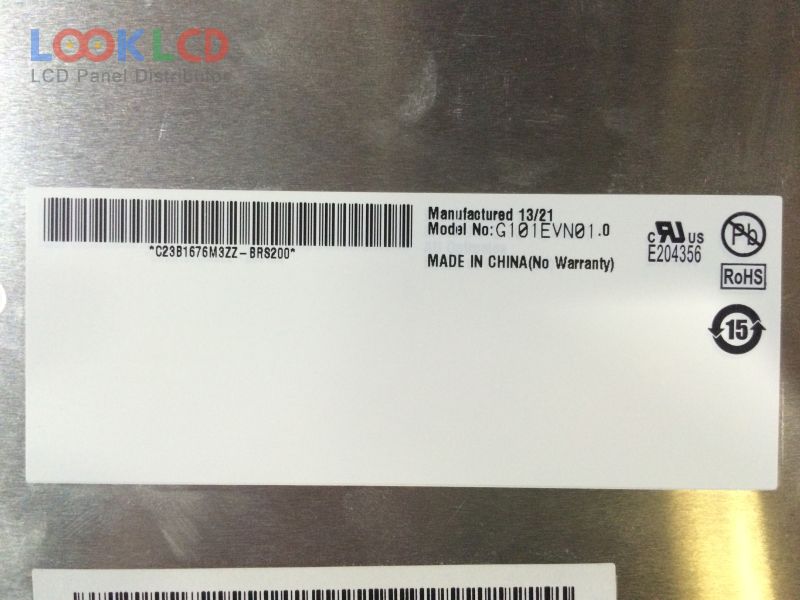

| PartZenbakia | G101EVN01.0 |
| Marka | AUO |
| Tamaina | 10.1 |
| Aplikazio | IA |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 1300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | AUO |
| panel eredua | G101EVN01.0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | MVA, Normally Black, Transmissive |
| eremu aktiboa | 216.96×135.6 mm |
| eskema | 229.46×149.2×5.54 mm |
| azalera | Hard coating (3H), Reflection 1.5% (Max.) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 1300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
