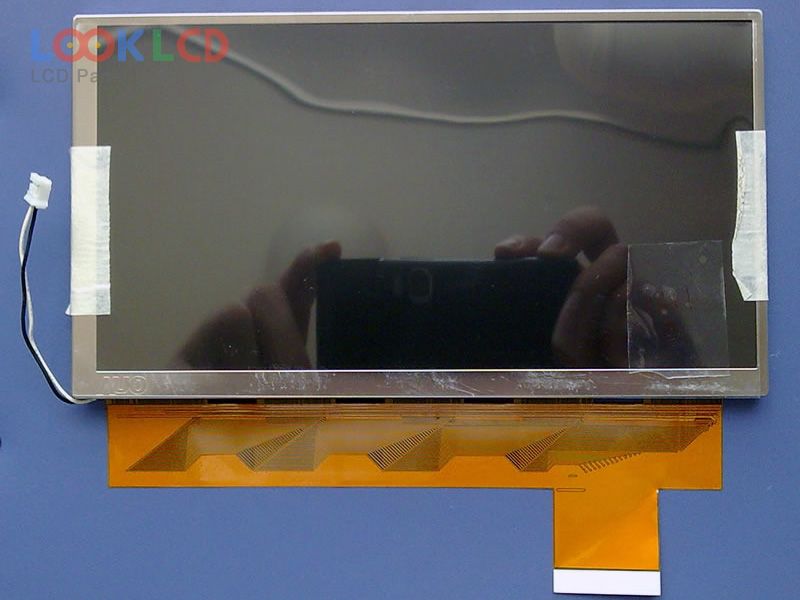

| PartZenbakia | C070VW03 V0 |
| Marka | AUO |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AUO |
| panel eredua | C070VW03 V0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 157.2×82.8 mm |
| eskema | 167×92.9×5.75 mm |
| azalera | Antiglare (Haze 25%) |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 6/10 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 50 pins |
| sarrerako tentsioa | 3.3/9.9/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplikazio | CNS |
